Massey Ferguson 284S

The Massey Ferguson 284S is a tractor produced by Massey Ferguson. It is equipped with a 235.5 ci 3.9 L engine. The listed engine power is Diesel (listed): 66 hp / 49.2 kW. Transmission: 12 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 7144 to 7505 pounds.

Engine Power

Diesel (listed): 66 hp / 49.2 kW

Drive & Traction

4x2 2WD

Fuel & Capacities

31.7 gal 120.0 L

Transmission

12 forward and 4 reverse

Operating Weight

7144 to 7505 pounds

Overview

	1983 - 1987 Landini built

Production
Distributor	Massey Ferguson
Manufacturer	Landini

Massey Ferguson 284S Engine
Perkins 3.9L 4-cyl diesel
Fuel tank	31.7 gal 120.0 L
Engine details ...

Massey Ferguson 284S Transmission
12-speed
Transmission details ...

Massey Ferguson 284S Power
Engine	66 hp 49.2 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	mechanical
Steering	hydrostatic power
Wet disc brakes
Cab optional with heat.

Hydraulics
Total flow	9.5 gpm 36.0 lpm

Tractor hitch
Rear Type	II
Control	position and depth control
Rear lift	4,721 lbs 2141 kg
	6,070 lbs 2753 kg
	7,419 lbs 3365 kg

Power Take-off (PTO)
Rear PTO Type	540/1000/ground

Dimensions & Tires
2WD Wheelbase	97.6 inches 247 cm
4WD Wheelbase	95.3 inches 242 cm
Weight	7144 to 7505 pounds
Front tire	7.50-20
Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative

Engine

Engine Detail — 235.5 ci / 3.9 L Diesel

Manufacturer	Perkins A4.236
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	235.5 ci 3.9 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	66 hp 49.2 kW
Fuel system	direct injection
Air cleaner	oil bath
Rated RPM	2150
Torque	188.8 lb-ft 256.0 Nm
Torque RPM	1300

Transmission

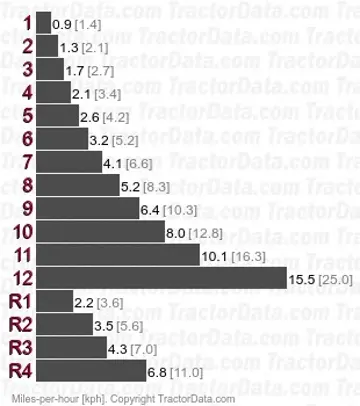

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	dry discs

Dimensions

Massey Ferguson 284S Tires
Ag front	7.50-20 (2WD)
	11.2-24 (4WD)
	12.4-24 (4WD)
Ag rear	16.9-30
	13.6-36
	16.9-34

Dimensions
2WD Wheelbase	97.6 inches 247 cm
4WD Wheelbase	95.3 inches 242 cm
Length	158.3 inches 402 cm
Height	100.8 inches 256 cm
Shipping weight	7,144 lbs (2WD) 3240 kg
	7,505 lbs (4WD) 3404 kg
2WD Ground clearance	20.9 inches 53 cm
4WD Ground clearance	15.4 inches 39 cm
2WD Front tread	55.1 to 74.8 inches 139 to 189 cm
4WD Front tread	59.1 to 74.8 inches 150 to 189 cm
Rear tread	59.1 to 74.8 inches 150 to 189 cm

Photos

Massey Ferguson 284S tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 284S based on its 66 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 284S.

Estimated Continuous Field Runtime: 9.2 hrs

Approximately 9.2 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (13 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
