CaseIH 3230

The CaseIH 3230 is a tractor produced by Caseih. It is equipped with a 206 ci 3.4 L engine. The listed engine power is Diesel (net): 56 hp / 41.8 kW; Diesel (gross): 60 hp / 44.7 kW. Transmission: 16 forward and 8 reverse. Operating weight: 6147 to 6905 pounds.

Overview

	1994 - 1997 3200 Utility SeriesUtility tractor 3200 Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $23,000 in 1997

CaseIH 3230 Engine
Case 3.4L 4-cyl diesel
Engine details ...

CaseIH 3230 Power
Engine (gross)	60 hp 44.7 kW
Engine (net)	56 hp 41.8 kW
PTO (claimed)	52 hp 38.8 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical (ROPS)
	electro-hydraulic (cab)
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Capacity
Fuel	20 gal (ROPS) 75.7 L
	29.6 gal (cab) 112.0 L
2WD Hydraulic system	9 gal 34.1 L
4WD Hydraulic system	9.7 gal 36.7 L

Hydraulics
Type	open center
2WD Capacity	9 gal 34.1 L
4WD Capacity	9.7 gal 36.7 L
Pressure	2500 psi 172.4 bar
Valves	0 to 3
Total flow	15.3 gpm 57.9 lpm
	17.7 gpmOptOptional 67.0 lpm

Tractor hitch
Rear Type	II
Control	draft and position control
Rear lift	3,665 lbs 1662 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540
	540/1000 OptOptional

Dimensions & Tires
2WD Wheelbase	84.5 inches 214 cm
4WD Wheelbase	88 inches 223 cm
Weight	6147 to 6905 pounds
Front tire	7.50-16
2WD Rear tire	16.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
	65 (cab, ROPS opt.)
Battery CCA	650
	750 OptOptional
Battery volts	12

References
New 3200 and 4200 Series Tractors published in 1994, by Case IH
3200/4200 Series Tractors published in 1994, by Case IH

Engine

Engine Detail — 206 ci / 3.4 L Diesel

Manufacturer	Case D206
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Power (net)	56 hp 41.8 kW
Power (gross)	60 hp 44.7 kW
Air cleaner	dry
Pre-heating	thermostart (optional)
	ether (optional)
Rated RPM	2300
Starter volts	12
Oil capacity	7.9 qts 7.5 L
Oil change	200 h
Coolant capacity	14.5 qts 13.7 L

Transmission

Transmission options
8-speed synchromesh
8-speed shuttle
16-speed partial power shift
16-speed synchromesh creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse range.
With 16.9x30 rear tires.

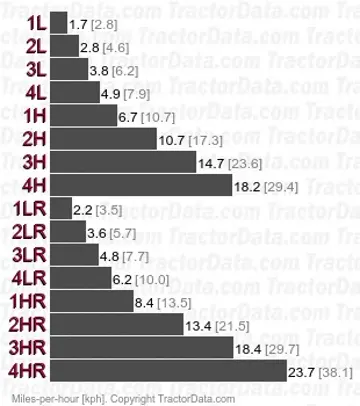

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
With 16.9x30 rear tires.

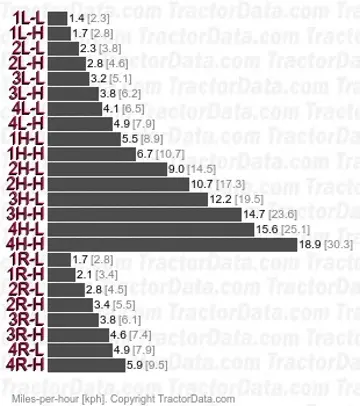

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.
With 16.9x30 rear tires.

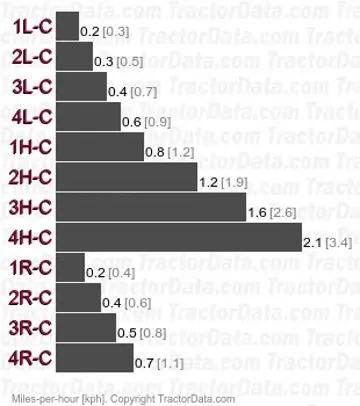

Transmission — 16 forward and 8 reverse synchromesh creeper

Type	synchromesh creeper
Gears	16 forward and 8 reverse
Clutch	11-inch dry cerametallic
	12-inch dry cerametallic (optional)
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.
With With 16.9x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.

Dimensions

CaseIH 3230 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9-28
4WD Standard tires (ag)	Front: 8.3-24. Rear: 16.9-28

Dimensions
2WD Wheelbase	84.5 inches 214 cm
4WD Wheelbase	88 inches 223 cm
Front tread	52 to 77 inches 132 to 195 cm (2WD straight)
Front tread	48 to 80 inches 121 to 203 cm (2WD sweptback)
Front tread	52 to 80 inches 132 to 203 cm (2WD low)
Front tread	52 to 77 inches 132 to 195 cm (2WD low-low)
Front tread	88 to 96 inches 223 to 243 cm (tobacco)

CaseIH 3230 Weight
Shipping	6147 lbs (2WD ROPS) 2788 kg
	6905 lbs (4WD ROPS) 3132 kg
Max capacity	10150 lbs (ROPS) 4604 kg
	12125 lbs (cab) 5499 kg

Photos

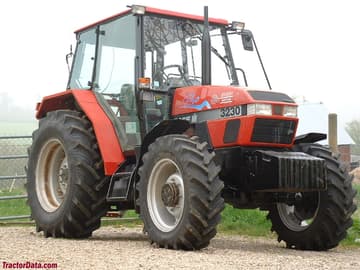

Case IH 3230.

Case IH 3230.
