Massey Ferguson 35X

The Massey Ferguson 35X is a tractor produced by Massey Ferguson. It is equipped with a 152.7 ci 2.5 L engine. The listed engine power is Diesel (listed): 44.5 hp / 33.2 kW. Transmission: Multi-Power. Operating weight: 3302 lbs 1497 kg.

Engine Power

Diesel (listed): 44.5 hp / 33.2 kW

Fuel & Capacities

10.2 gal 38.6 L

Transmission

Multi-Power

Operating Weight

3302 lbs 1497 kg

Overview

	1962 - 1964 Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Coventry, England

Massey Ferguson 35X Engine
Perkins 2.5L 3-cyl diesel
Fuel tank	10.2 gal 38.6 L
Engine details ...

Massey Ferguson 35X Power
Engine	44.5 hp 33.2 kW

Mechanical
Two-wheel drive
Differential lock	mechanical rear OptOptional
Manual steering
Mechanical drum brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2000 psi 137.9 bar
Pump flow	3.7 gpm 14.0 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift	2500 lbs 1134 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@1500
	540@1700 *After 1963

Dimensions & Tires
Weight	3302 lbs 1497 kg
Front tire	6.00-16
Rear tire	12.4/11-28
Full dimensions and tires ...

References

35X Tractor published in 1962, by Massey Ferguson
35X Tractor published in 1964, by Massey Ferguson
Product Information: 35X Tractor published in 1962, by Massey Ferguson

Engine

Engine Detail — 152.7 ci / 2.5 L Diesel

Manufacturer	Perkins A3.152
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	152.7 ci 2.5 L
Bore/Stroke	3.60x5.00 inches 91 x 127 mm
Power	44.5 hp 33.2 kW
Fuel system	indirect injection
Air cleaner	oil bath
Compression	17.4:1
Rated RPM	2250
Idle RPM	500-2375
Torque	119 lb-ft 161.4 Nm
Torque RPM	1300
Firing order	1-2-3
Starter	electric
Starter volts	12

Transmission

Transmission options
6-speed gear
12-speed partial power shift

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Clutch	279.4mm dry disc
Oil capacity	32 qts 30.3 L
With 11-28 rear tires.

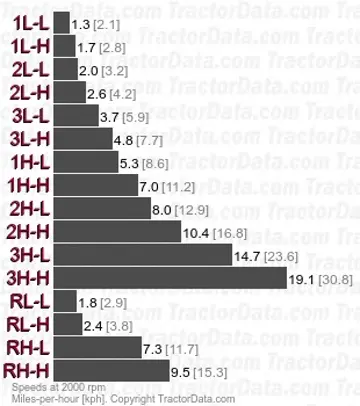

Transmission — Multi-Power

Transmission	Multi-Power
Type	partial power shift
Gears	12 forward and 4 reverse
Oil capacity	32 qts 30.3 L
Multi-Power adds a Low-High power shift to the basic transmission. The transmission will free-wheel in Multi-Power low, it must be set to high for engine braking.

Dimensions

Massey Ferguson 35X Tires
Ag front	6.00-16
Ag rear	12.4/11-28
Ag front	4.00-19
Ag rear	10-28

Dimensions
Length	117 inches 297 cm
Width	64 inches 162 cm
Height (steering wheel)	54 inches 137 cm
Height (exhaust)	79.5 inches 201 cm
Operating weight	3302 lbs 1497 kg
Ballasted weight	7280 lbs 3302 kg
Clearance (rear axle)	12.75 inches 32 cm
Front tread	48 to 80 inches 121 to 203 cm
Rear tread	48 to 76 inches 121 to 193 cm

Photos

Massey Ferguson 35X

Massey Ferguson 35X, front view.

Massey Ferguson 35X operator station and controls.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 35X based on its 44.5 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 35X.

Estimated Continuous Field Runtime: 4.4 hrs

Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (10.2 gal / 38.6 L).

Estimated 75% Load Fuel Burn~2.3 gal/hr (8.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
