Massey Ferguson 4215

The Massey Ferguson 4215 is a tractor produced by Massey Ferguson. It is equipped with a 164.8 ci 2.7 L engine. The rated power output is 52 hp 38.8 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5258 to 5809 pounds.

Overview

	1997 - 2001 4200 SeriesUtility tractor
1997 - 2001
4200 Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 4215 Engine
Perkins 2.7L 3-cyl diesel
Engine details ...

Massey Ferguson 4215 Power
Engine	52 hp 38.8 kW
PTO (claimed)	44.8 hp 33.4 kW

Mechanical
Two- or four-wheel drive
4WD Differential lock	electro-hydraulic front and rear
2WD Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard with heater.

Capacity
Fuel	22.2 gal 84.0 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Capacity	13.2 gal 50.0 L
Pressure	3046 psi 210.0 bar
Valves	1 to 4
Pump flow	10 gpm 37.9 lpm
Total flow	14.5 gpm 54.9 lpm

Tractor hitch
Rear Type	II/I
Control	position control and mechanical draft control

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540 (1.375)
Engine RPM	540@1789

Dimensions & Tires
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	87.8 inches 223 cm
Weight	5258 to 5809 pounds
Front tire	7.50-16
2WD Rear tire	12.4R32
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 164.8 ci / 2.7 L Diesel

Manufacturer	Perkins 903
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	164.8 ci 2.7 L
Bore/Stroke	3.74x5.00 inches 95 x 127 mm
Power	52 hp 38.8 kW
Fuel system	direct injection
Air cleaner	dry element
Rated RPM	2250
Torque	140.1 lb-ft 190.0 Nm
Torque RPM	1200
Starter	electric
Starter volts	12
Coolant capacity	10.8 qts 10.2 L

Transmission

Transmission options
8-speed mechanical shuttle
12-speed synchromesh

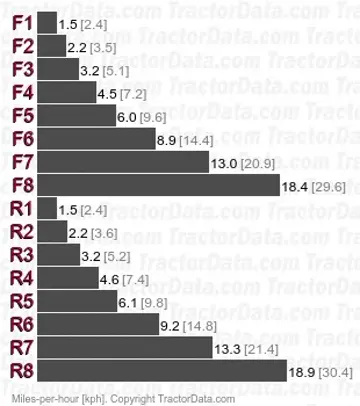

Transmission — 8 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and reverse
Clutch	305mm dry disc
Four gears (1-4) in two ranges (Low/High) with mechanical shuttle.
With 12.4R32 rear tires.

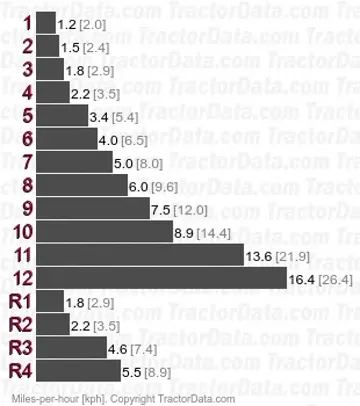

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Clutch	305mm dry disc
Three gears (1-3) plus reverse (R) in two ranges (Low/High) with additional two-speed synchronized range shift.
With 12.4R32 rear tires.

Dimensions

Massey Ferguson 4215 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 12.4R32
4WD Standard tires (ag)	Front: 8.3R24. Rear: 12.4R32

Dimensions
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	87.8 inches 223 cm
Length	147.2 inches 373 cm
Width	74.8 inches*Minimum width 189 cm
Height (cab)	94.1 inches 239 cm
2WD Weight	5258 lbs 2385 kg
4WD Weight	5809 lbs 2634 kg
Ground clearance	11 inches 27 cm
2WD Front tread	49.2 to 73.2 inches 124 to 185 cm
4WD Front tread	44.1 to 64.2 inches 112 to 163 cm
Rear tread	52 to 72.1 inches 132 to 183 cm
