Massey Ferguson 4225

The Massey Ferguson 4225 is a tractor produced by Massey Ferguson. It is equipped with a 250 ci 4.1 L engine. The rated power output is 65 hp 48.5 kW. Transmission: Speedshift. Operating weight: 6936 to 7487 pounds.

Overview

	1997 - 2001 4200 SeriesUtility tractor
1997 - 2001
4200 Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 4225 Engine
Perkins 4.1L 4-cyl diesel
Engine details ...

Massey Ferguson 4225 Power
Engine	65 hp 48.5 kW
PTO (claimed)	57.7 hp 43.0 kW

Mechanical
Two- or four-wheel drive
4WD Differential lock	electro-hydraulic front and rear
2WD Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic
Cab standard with heater. Optional air-conditioning. Available Versa cab with reversible seating position.

Capacity
Fuel	22.2 gal 84.0 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Capacity	13.2 gal 50.0 L
Pressure	3046 psi 210.0 bar
Valves	2 to 4
Pump flow	10 gpm 37.9 lpm
Total flow	17.4 gpm 65.9 lpm
	15.85 gpm*With 540E PTO. 60.0 lpm

Tractor hitch
Rear Type	II/I
Control	position control and mechanical draft control, electronic draft control optional

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540/540E
	540/1000 OptOptional
Engine RPM	540@1979
	540E@1421
	540@1902 *With 1000
	1000@2000

Dimensions & Tires
Wheelbase	92.5 inches 234 cm
Weight	6936 to 7487 pounds
Front tire	7.50-16
2WD Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 250 ci / 4.1 L Diesel

Manufacturer	Perkins 4.41
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	250 ci 4.1 L
Bore/Stroke	3.98x5.00 inches 101 x 127 mm
Power	65 hp 48.5 kW
Fuel system	direct injection
Air cleaner	dry element
Rated RPM	2200
Torque	188.1 lb-ft 255.1 Nm
Torque RPM	1200
Starter	electric
Starter volts	12
Coolant capacity	18.5 qts 17.5 L

Transmission

Transmission options
12-speed mechanical shuttle
18-speed two-speed power shift
12-speed power shuttle
24-speed power shuttle

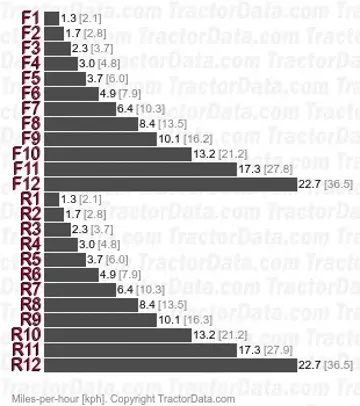

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	305mm cerametallic disc
Four gears (1-4) in three ranges (L/M/H) with mechanical shuttle.
With 16.9R34 rear tires.

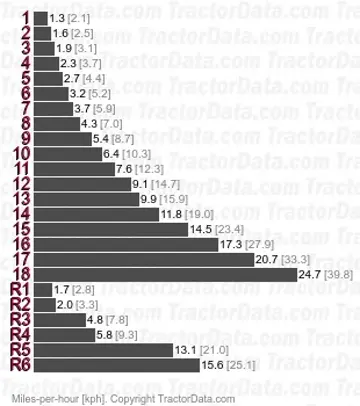

Transmission — Speedshift

Transmission	Speedshift
Type	two-speed power shift
Gears	18 forward and 6 reverse
Clutch	305mm cerametallic disc
Three gears (1-3) plus reverse (R) in three ranges (L/M/H) with push-button Speedshift power shift.
With 16.9R34 rear tires.

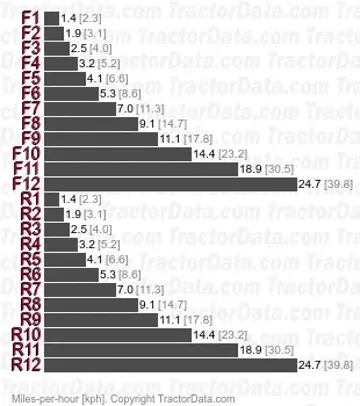

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	electro-hydraulic wet disc
Four gears (1-4) in three ranges (L/M/H) with power shuttle.
With 16.9R34 rear tires.

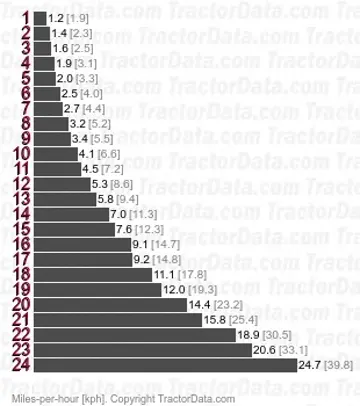

Transmission — 24 forward and reverse power shuttle

Type	power shuttle
Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Four gears (1-4) in three ranges (L/M/H) with power shuttle and push-button two-speed power shift.
With 16.9R34 rear tires.

Dimensions

Massey Ferguson 4225 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9R30
4WD Standard tires (ag)	Front: 11.2R24. Rear: 16.9R30

Dimensions
Wheelbase	92.5 inches 234 cm
Length	151.6 inches 385 cm
Width	81.1 inches*Minimum width 205 cm
Height (cab)	96.5 inches (LoProfile) 245 cm
	101.2 inches (HiVis) 257 cm
2WD Weight	6936 lbs 3146 kg
4WD Weight	7487 lbs 3396 kg
Ground clearance	13.4 inches 34 cm
2WD Front tread	52 to 71.7 inches 132 to 182 cm
4WD Front tread	55.5 to 75.2 inches 140 to 191 cm
Rear tread	56.3 to 83.9 inches 143 to 213 cm
