Massey Ferguson 4260

The Massey Ferguson 4260 is a tractor produced by Massey Ferguson. It is equipped with a 365.2 ci 6.0 L engine. The rated power output is 100 hp 74.6 kW. Transmission: Speedshift. Operating weight: 8534 to 9050 pounds.

Overview

	1997 - 2001 4200 SeriesUtility tractor
1997 - 2001
4200 Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 4260 Engine
Perkins 6.0L 6-cyl diesel
Engine details ...

Massey Ferguson 4260 Power
Engine	100 hp 74.6 kW
PTO (claimed)	93.5 hp 69.7 kW
Drawbar (tested)	78.3 hp 58.4 kW
PTO (tested)	94.9 hp 70.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
4WD Differential lock	electro-hydraulic front and rear
2WD Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic
Cab standard with heater. Optional air-conditioning. Available Versa cab with reversible seating position.

Capacity
Fuel	37.8 gal 143.1 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Capacity	13.2 gal 50.0 L
Pressure	3046 psi 210.0 bar
Valves	2 to 4
Pump flow	10 gpm 37.9 lpm
Total flow	17.4 gpm 65.9 lpm

Tractor hitch
Rear Type	II
Control	position control and mechanical draft control, electronic draft control optional

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1902
	1000@2000

Dimensions & Tires
Wheelbase	102.8 inches 261 cm
Weight	8534 to 9050 pounds
Front tire	10.00-16
2WD Rear tire	16.9R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 365.2 ci / 6.0 L Diesel

Manufacturer	Perkins 1006
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	365.2 ci 6.0 L
Bore/Stroke	3.94x5.00 inches 100 x 127 mm
Power	100 hp 74.6 kW
Fuel system	direct injection
Air cleaner	dry element
Rated RPM	2200
Torque	286.2 lb-ft 388.1 Nm
Torque RPM	1200
Starter	electric
Starter volts	12
Coolant capacity	29.6 qts 28.0 L

Transmission

Transmission options
12-speed mechanical shuttle
18-speed two-speed power shift
12-speed power shuttle
24-speed power shuttle

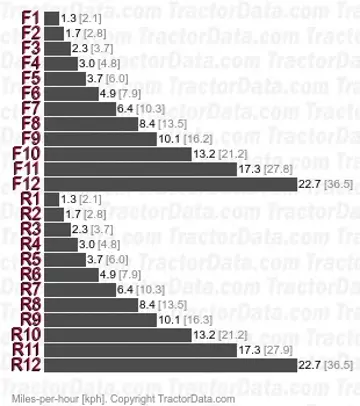

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	330 cerametallic disc
Four gears (1-4) in three ranges (L/M/H) with mechanical shuttle.
With 16.9R34 rear tires.

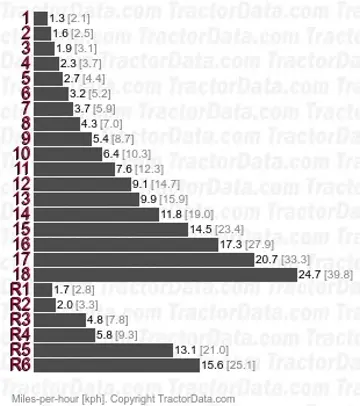

Transmission — Speedshift

Transmission	Speedshift
Type	two-speed power shift
Gears	18 forward and 6 reverse
Clutch	330 cerametallic disc
Three gears (1-3) plus reverse (R) in three ranges (L/M/H) with push-button Speedshift power shift.
With 16.9R34 rear tires.

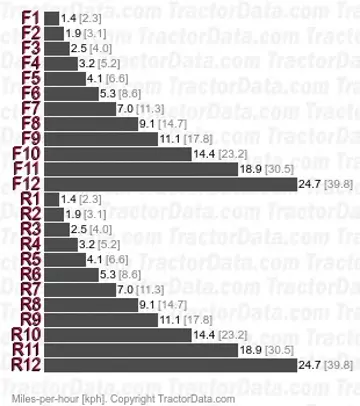

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	electro-hydraulic wet disc
Four gears (1-4) in three ranges (L/M/H) with power shuttle.
With 16.9R34 rear tires.

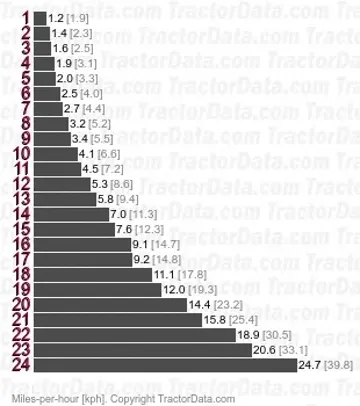

Transmission — 24 forward and reverse power shuttle

Type	power shuttle
Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Four gears (1-4) in three ranges (L/M/H) with power shuttle and push-button two-speed power shift.
With 16.9R34 rear tires.

Dimensions

Massey Ferguson 4260 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 16.9R38
4WD Standard tires (ag)	Front: 13.6R28. Rear: 16.9R38

Dimensions
Wheelbase	102.8 inches 261 cm
Length	170.1 inches 432 cm
Width	81.1 inches*Minimum width 205 cm
Height (cab)	106.3 inches 270 cm
2WD Weight	8534 lbs 3871 kg
4WD Weight	9050 lbs 4105 kg
Ground clearance	17.4 inches 44 cm
2WD Front tread	57.1 to 85.4 inches 145 to 216 cm
4WD Front tread	61.8 to 80.7 inches 156 to 204 cm
Rear tread	60.2 to 88.2 inches 152 to 224 cm

Tests

OCED Tractor Test 1731
Diesel 12-speed 4WD August 1 - September 1, 1997 Link: OCED Tractor Test 1731 file
PTO performance
Max power	94.9 hp 70.8 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Power at rated engine speed	94.4 hp 70.4 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Power at rated PTO speed	92.7 hp 69.1 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Drawbar performance
Max power	78.3 hp 58.4 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Gear 2M used for power test.
Max pull	9420 lbs 4272 kg
Gear 2L used for pull test.

Photos

Massey Ferguson 4260 tractor photo
