John Deere 5090E

The John Deere 5090E is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 90 hp 67.1 kW. Transmission: PowrReverser Plus. Operating weight: 7275 to 8150 pounds.

Overview

	2018 - 5E SeriesUtility tractor
2018 -
5E Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price	$51,590 (2019 )
	$54,203 (2021 )

Variants
5090E	utility
5090EL	low-profile

John Deere 5090E Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	29.7 gal 112.4 L
Exhaust fluid (DEF)	3.2 gal 12.1 L
Engine details ...

John Deere 5090E Power
Engine (gross)	90 hp 67.1 kW
PTO (claimed)	75 hp 55.9 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Rear valves	2 or 3
Mid valves	0 to 3
Pump flow	15.9 gpm 60.2 lpm
Total flow	22.5 gpm 85.2 lpm
Steering flow	6.6 gpm 25.0 lpm

Tractor hitch
Rear Type	II
Control	top-link draft sensing
Rear lift (at 24"/610mm)	3213 lbs 1457 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/540E
	540/1000
Engine RPM	540@2400
	540E@1716
	1000@2400

Dimensions & Tires
Wheelbase	92.5 inches 234 cm
Weight	7275 to 8150 pounds
Front tire	12.4-24
Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	90
Cab Charging amps	120
Battery CCA	950
Battery volts	12
Battery AH	180

References
5E Utility Tractors published in 2018, by John Deere
5E Utility Tractors published in 2019, by John Deere
5E Utility Tractors published in 2022, by John Deere

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere PowerTech 4045
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled inline
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier IV
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	90 hp 67.1 kW
Rated RPM	90
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed power shuttle
24-speed power shuttle

Transmission — PowrReverser

Transmission	PowrReverser
Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc
Four gears in three ranges with left-hand power shuttle.
With 460/85R30 rear tires. Reverse speeds are about 10% faster than forward.

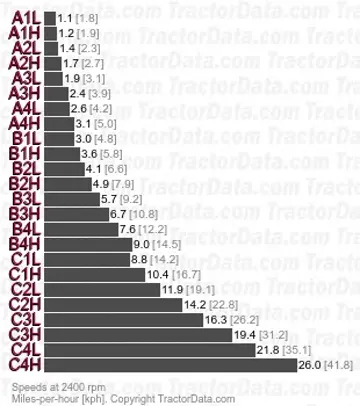

Transmission — PowrReverser Plus

Transmission	PowrReverser Plus
Type	power shuttle
Gears	24 forward and 12 reverse
Clutch	wet disc
Four gears in three ranges with shuttle and push-button two-speed power shift for all forward gears.
With 460/85R30 rear tires. Reverse speeds are between the corresponding low and high forward speed.

Dimensions

John Deere 5090E Tires
Standard tires (ag)	Front: 12.4-24. Rear: 18.4-30

Dimensions
Wheelbase	92.5 inches 234 cm
Length	159.1 inches 404 cm
Width	85.1 inches*Minimum width. 216 cm
ROPS Weight	7275 lbs 3299 kg
Cab Weight	8150 lbs 3696 kg
Clearance (front axle)	17 inches 43 cm
Flange rear axle

John Deere 5090E Height
Hood	70.6 inches 179 cm
ROPS	101.1 inches 256 cm
Cab	102.4 inches 260 cm
