Massey Ferguson 4291

The Massey Ferguson 4291 is a tractor produced by Massey Ferguson. It is equipped with a 268.6 ci 4.4 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW. Transmission: 12 forward and 4 reverse. Operating weight: 10957 to 12006 pounds.

Engine Power

Diesel (listed): 100 hp / 74.6 kW

Fuel & Capacities

25.1 gal 95.0 L

Transmission

12 forward and 4 reverse

Operating Weight

10957 to 12006 pounds

Overview

	2010 - 2020 4200 Latin America SeriesRow-Crop tractor 4200 Latin America Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Row-Crop tractor
Built in Canoas, Brazil

Massey Ferguson 4291 Engine
Perkins 4.4L 4-cyl diesel
Engine details ...

Massey Ferguson 4291 Transmission
12-speed gear
Transmission details ...

Massey Ferguson 4291 Power
Engine	100 hp 74.6 kW
PTO (claimed)	88 hp 65.6 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Two-post fixed ROPS. Cab optional.

Capacity
ROPS Fuel	25.1 gal 95.0 L
Cab Fuel	38.3 gal 145.0 L
Hydraulic system	11.9 gal 45.0 L

Hydraulics
Capacity	11.9 gal 45.0 L
Pressure	2466 psi 170.0 bar
Valves	2 or 3
Pump flow	15.9 gpm 60.2 lpm
	18.2 gpmOptOptional 68.9 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1900
	1000@1900

Dimensions & Tires
Wheelbase	93.7 inches 237 cm
Weight	10957 to 12006 pounds
Front tire	9.00-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55
Cab Charging amps	120
Battery volts	12

References

Series 4200 published in 2010, by Massey Ferguson
MF4291 published in 2010, by Massey Ferguson

Engine

Engine Detail — 268.6 ci / 4.4 L Diesel

Manufacturer	Perkins 1104C-44T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled inline
Displacement	268.6 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Power	100 hp 74.6 kW
Rated RPM	2200
Torque	306 lb-ft 414.9 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Oil capacity	8.5 qts 8.0 L

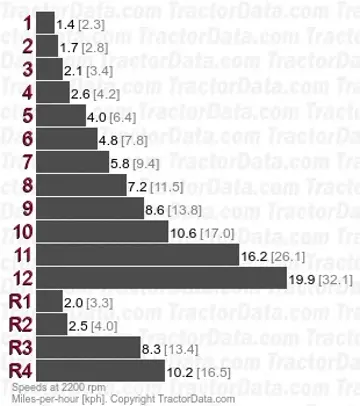

Transmission

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	dry disc
With 18.4-34 rear tires.

Dimensions

Massey Ferguson 4291 Tires
Standard tires (ag)	Front: 9.00-16. Rear: 18.4-34

Dimensions
Wheelbase	93.7 inches 237 cm
2WD Length	160.2 inches 406 cm
4WD Length	168.1 inches 426 cm
Height	104.3 inches 264 cm
2WD Weight	10957 lbs 4970 kg
4WD Weight	12006 lbs 5445 kg
Ground clearance	15 inches 38 cm
Rear tread	55.9 to 91.7 inches 141 to 232 cm

Photos

Massey Ferguson 4291 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 4291 based on its 100 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 4291.

Estimated Continuous Field Runtime: 4.8 hrs

Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (25.1 gal / 95 L).

Estimated 75% Load Fuel Burn~5.2 gal/hr (19.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
