Massey Ferguson 4360

The Massey Ferguson 4360 is a tractor produced by Massey Ferguson. It is equipped with a 365.2 ci 6.0 L engine. The listed engine power is Diesel (net): 100 hp / 74.6 kW; Diesel (gross): 106 hp / 79.0 kW. Transmission: 24 forward and reverse. Operating weight: 6959 to 9085 pounds.

Overview

	2001 - 2003 4300 SeriesUtility tractor 4300 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Coventry, England

Massey Ferguson 4360 Engine
Perkins 6.0L 6-cyl diesel
Cab Fuel tank	38 gal 143.8 L
ROPS Fuel tank	34.3 gal 129.8 L
Cab Fuel tank	54.4 galOptOptional 205.9 L
ROPS Fuel tank	52.8 galOptOptional 199.8 L
Engine details ...

Massey Ferguson 4360 Power
Engine (gross)	106 hp 79.0 kW
Engine (net)	100 hp 74.6 kW
PTO (claimed)	90 hp 67.1 kW
Drawbar (tested)	78.3 hp 58.4 kW
PTO (tested)	94.9 hp 70.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Pressure	3046 psi 210.0 bar
Valves	2 to 4
SCV flow	10 gpm 37.9 lpm
	17.4 gpm*Combined flow or optional dedicated flow system with power shuttle transmission. 65.9 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at 24"/610mm)	4495 lbs 2038 kg
	5710 lbsOptOptional 2590 kg
Rear Arms	telescopic lower links

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1902
	1000@2000

Dimensions & Tires
Wheelbase	103 inches 261 cm
Weight	6959 to 9085 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	80
Cab Charging amps	120 OptOptional
Batteries	2
Battery CCA	590
Battery volts	12

References
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
4300 Series Tractors published in 2001, by Massey Ferguson
MF 4300 Series Orchard Cab Tractors published in 2001, by Massey Ferguson

Engine

Engine Detail — 365.2 ci / 6.0 L Diesel

Manufacturer	Perkins 1006.60
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	365.2 ci 6.0 L
Bore/Stroke	3.937x5.00 inches 100 x 127 mm
Rated Power (net)	100 hp 74.6 kW
Power (gross)	106 hp 79.0 kW
Air cleaner	dual paper elements
Compression	17.3:1
Rated RPM	2200
Torque	286 lb-ft 387.8 Nm
Torque RPM	1200
Starter	electric
Starter volts	12
Coolant capacity	18.4 qts 17.4 L

Transmission

Transmission options
12-speed gear
12-speed power shuttle
24-speed power shuttle

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	dry disc

Transmission — 12 forward and reverse gear

Type	gear
Gears	12 forward and reverse
Clutch	dry disc

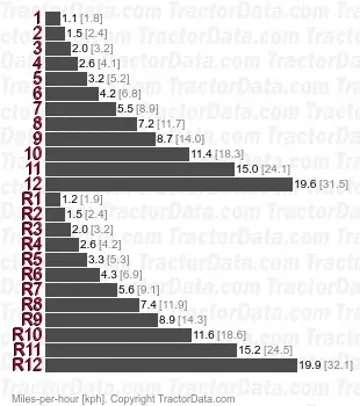

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc

Transmission — 24 forward and reverse power shuttle

Type	power shuttle
Gears	24 forward and reverse
Clutch	wet disc

Dimensions

Massey Ferguson 4360 Tires

Dimensions
Wheelbase	103 inches 261 cm
Length	175 inches 444 cm
Width	81 inches 205 cm
Ground clearance	14 inches 35 cm
2WD Front tread	54 to 78 inches 137 to 198 cm
4WD Front tread	55 to 75 inches 139 to 190 cm
Rear tread	56 to 84 inches 142 to 213 cm

Massey Ferguson 4360 Weight
2WD ROPS	6959 lbs 3156 kg
4WD ROPS	7952 lbs 3607 kg
2WD Cab	8534 lbs 3871 kg
4WD Cab	9085 lbs 4120 kg
Operating	9080 lbs 4118 kg

Massey Ferguson 4360 Height
Steering wheel	71 inches 180 cm
ROPS	103 inches 261 cm
Cab	104 inches 264 cm

Tests

OCED Tractor Test 1731
Diesel 12-speed 4WD August 1 - September 1, 1997 Link: OCED Tractor Test 1731 file
PTO performance
Max power	94.9 hp 70.8 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Power at rated engine speed	94.4 hp 70.4 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Power at rated PTO speed	92.7 hp 69.1 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Drawbar performance
Max power	78.3 hp 58.4 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Gear 6 used for power test.
Max pull	9420 lbs 4272 kg
Gear 2L used for pull test.

Photos

Massey Ferguson 4360 tractor photo
