Massey Ferguson 492

The Massey Ferguson 492 is a tractor produced by Massey Ferguson. It is equipped with a 268.6 ci 4.4 L engine. The rated power output is 99 hp 73.8 kW. Transmission: 12 forward and 4 reverse. Operating weight: 6812 to 8385 pounds.

Overview

	2004 - 2006 400 SeriesUtility tractor
2004 - 2006
400 Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Brazil

Massey Ferguson 492 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	29 gal 109.8 L
Engine details ...

Massey Ferguson 492 Transmission
12-speed partially synchronized
Transmission details ...

Massey Ferguson 492 Power
Engine (gross)	99 hp 73.8 kW
PTO (claimed)	85 hp 63.4 kW
PTO (tested)	91.66 hp 68.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Independent hydraulic wet disc brakes
Flat-deck platform with two-post folding ROPS. Optional cab with air-conditioning.

Hydraulics
Type	open center
Valves	2 or 3
Pump flow	7.0 gpm (3-point) 26.5 lpm
	10 gpm (aux) 37.9 lpm
SCV flow	17 gpm 64.3 lpm
Total flow	25 gpm 94.6 lpm
Steering flow	8.0 gpm 30.3 lpm

Tractor hitch
Rear Type	II
Control	position control and top-link draft sensing
Rear lift (at 24"/610mm)	4199 lbs 1904 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1900
	1000@1900

Dimensions & Tires
Wheelbase	93 inches 236 cm
Weight	6812 to 8385 pounds
Front tire	14.9-24
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
400 Series Tractors published in 2005, by Massey Ferguson

Engine

Engine Detail — 268.6 ci / 4.4 L Diesel

Manufacturer	Perkins 1104C-44T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	268.6 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power (gross)	99 hp 73.8 kW
Air cleaner	dual paper elements
Compression	18.2:1
Rated RPM	2200
Torque	293 lb-ft 397.3 Nm
Torque RPM	1300
Starter volts	12

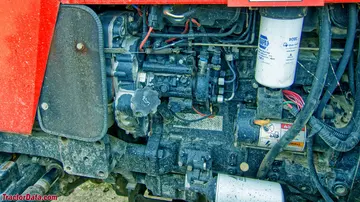

Massey Ferguson 492 Engine
Image courtesy of Damon McGaha

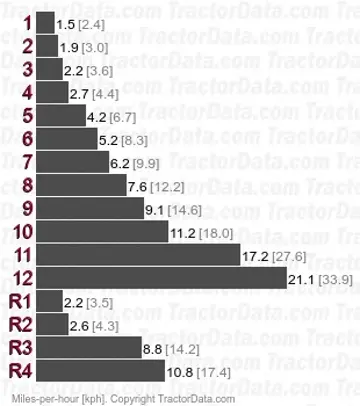

Transmission

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	330mm dry disc
Three gears (1-3) plus reverse (R) with low/high ranges and an additional synchronized slow/fast range lever. Synchronized shifting between gears 2-3 and the slow/fast range.

Dimensions

Massey Ferguson 492 Tires
Ag front	14.9-24
Ag rear	18.4-34

Dimensions
Wheelbase	93 inches 236 cm
Length	155 inches 393 cm
Width	80 inches 203 cm
Clearance (drawbar)	14.7 inches 37 cm

Massey Ferguson 492 Weight
2WD ROPS Shipping	6,812 lbs 3089 kg
4WD ROPS Shipping	7,275 lbs 3299 kg
2WD Cab Shipping	7,562 lbs 3430 kg
4WD Cab Shipping	8,025 lbs 3640 kg
4WD Cab Operating	8,385 lbs 3803 kg

Massey Ferguson 492 Height
ROPS	102.5 inches 260 cm
Height (Folded ROPS)	79.4 inches 201 cm
Cab	106 inches 269 cm
Exhaust	108 inches 274 cm

Tests

Nebraska Tractor Test 1852
Diesel 12-speed 4WD June 22 - 23, 2005 Link: Nebraska Tractor Test 1852 file
PTO performance
Max power	91.66 hp 68.4 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Power at rated engine speed	87.61 hp 65.3 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Power at rated PTO speed	90.37 hp 67.4 kW
Fuel use	5.1 gal/hour 19.3 l/hour

Attachments

Attachment overview
Massey Ferguson 1065 loader
Massey Ferguson 1070 loader
