Massey Ferguson 5300

The Massey Ferguson 5300 is a tractor produced by Massey Ferguson. It is equipped with a 244 ci 4.0 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 18 forward and 6 reverse. Operating weight: 7736 to 8287 pounds.

Engine Power

Diesel (listed): 95 hp / 70.8 kW

Fuel & Capacities

33 gal 124.9 L

Transmission

18 forward and 6 reverse

Operating Weight

7736 to 8287 pounds

Overview

	2002 - 2006 5000 SeriesUtility tractor 5000 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Canoas, Brazil

Massey Ferguson 5300 Engine
Perkins 4.0L 4-cyl diesel
Engine details ...

Massey Ferguson 5300 Power
Engine	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	electro-hydraulic rear
Power steering
Wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Capacity
Fuel	33 gal 124.9 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Capacity	13.2 gal 50.0 L
Total flow	14.5 gpm 54.9 lpm
	18 gpm*With 540/1000 PTO. 68.1 lpm

Tractor hitch
Rear Type	II
Rear lift	6614 lbs 3000 kg
	8818 lbsOptOptional 3999 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	540/1000 (1.375)
Engine RPM	540@1900
	1000@2000

Dimensions & Tires
Wheelbase	92.5 inches 234 cm
Weight	7736 to 8287 pounds
Front tire	9.00-16
2WD Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70
Battery volts	12
Battery AH	90

Engine

Engine Detail — 244 ci / 4.0 L Diesel

Manufacturer	Perkins 1004
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	244 ci 4.0 L
Bore/Stroke	3.94x5.00 inches 100 x 127 mm
Power	95 hp 70.8 kW
Air cleaner	dual element dry
Rated RPM	2200
Torque	231.5 lb-ft 313.9 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed
18-speed

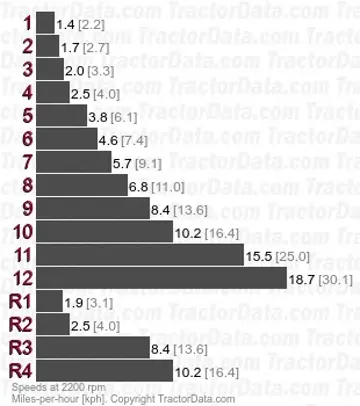

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	330mm disc
With 18.4-34 rear tires.

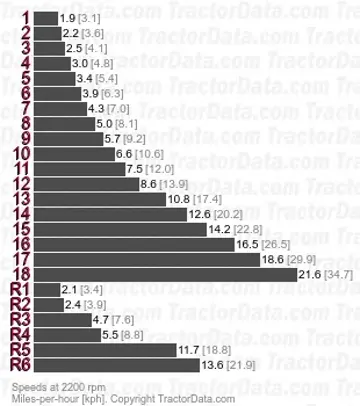

Transmission — 18 forward and 6 reverse

Gears	18 forward and 6 reverse
With 18.4-34 rear tires.

Dimensions

Massey Ferguson 5300 Tires
2WD Standard tires (ag)	Front: 9.00-16. Rear: 18.4-34
2WD Standard tires (ag)	Front: 9.00-16. Rear: 23.1-26
2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4-34
4WD Standard tires (ag)	Front: 14.9-24. Rear: 18.4-34
4WD Standard tires (ag)	Front: 14.9-24. Rear: 23.1-26
4WD Standard tires (ag)	Front: 12.4-24. Rear: 13.6-38

Dimensions
Wheelbase	92.5 inches 234 cm
Length	157.9 inches 401 cm
Width	81.1 inches 205 cm
Height	104.7 inches 265 cm
Ground clearance	15.4 inches 39 cm

Massey Ferguson 5300 Weight
2WD	7736 lbs 3509 kg
4WD	8287 lbs 3758 kg
Ballasted	12077 lbs 5478 kg

Photos

Massey Ferguson 5300 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5300 based on its 95 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5300.

Estimated Continuous Field Runtime: 6.7 hrs

Approximately 6.7 hours of continuous field operation at ~75% rated power on a full tank (33 gal / 124.9 L).

Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
