Massey Ferguson 5455

The Massey Ferguson 5455 is a tractor produced by Massey Ferguson. It is equipped with a 268.5 ci 4.4 L engine. The rated power output is 95 hp 70.8 kW. Transmission: Dyna-4. Operating weight: 8675 to 9305 pounds.

Overview

	2005 - 2013 Model year 2005-20082008-2013 5400 SeriesUtility tractor
2005 - 2013
Model year 2005-20082008-2013
5400 Series
Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France

Massey Ferguson 5455 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	40 gal 151.4 L
	53.2 gal (with optional tank) 201.4 L
Engine details ...

Massey Ferguson 5455 Transmission
16-speed
Transmission details ...

Massey Ferguson 5455 Power
Engine	95 hp 70.8 kW
Drawbar (claimed)	67 hp 50.0 kW
PTO (claimed)	80 hp 59.7 kW
Drawbar (tested)	66.8 hp 49.8 kW
PTO (tested)	82.6 hp 61.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
ROPS, cab optional

Hydraulics
Type	open center
	closed OptOptional
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Total flow	15 gpm (open) 56.8 lpm
	34.8 gpm (combined flow) 131.7 lpm
	29 gpm (closed) 109.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7,000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000 OptOptional

Dimensions & Tires
Wheelbase	97 inches 246 cm
Weight	8675 to 9305 pounds
Front tire	10.00-16
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	80
Battery CCA	505
Battery volts	12

References
5400 Series published in 2006, by Massey Ferguson

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	Perkins 1104
Configuration	wastegate turbocharged diesel, 4-cylinder, liquid-cooled vertical
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	95 hp 70.8 kW
Air cleaner	dual paper elements
Compression	17.5:1
Rated RPM	2200
Starter volts	12

Massey Ferguson 5455 Engine

Transmission

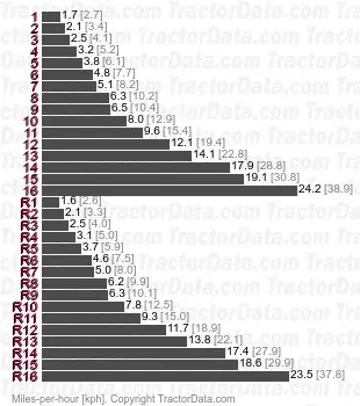

Transmission — Speedshift, mechnical powershift

Transmission	Speedshift, mechnical powershift
Gears	16 forward and reverse

Transmission — Dyna-4

Transmission	Dyna-4
Gears	16 forward and reverse

Dimensions

Massey Ferguson 5455 Tires
Ag front	10.00-16 (2WD)
	14.9R28 (4WD)
Ag rear	18.4R38

Dimensions
Wheelbase	97 inches 246 cm
Length	165.7 inches 420 cm
Width	79.3 inches 201 cm
Height	108.3 inches 275 cm
2WD Operating weight	8675 lbs 3934 kg
4WD Operating weight	9305 lbs 4220 kg

Tests

OCED Tractor Test 2289
Diesel 16-speed 4WD May 1 - 31, 2004 Link: OCED Tractor Test 2289 file
PTO performance
Max power	82.6 hp 61.6 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Power at rated engine speed	80.2 hp 59.8 kW
Fuel use	5.2 gal/hour 19.7 l/hour
Power at rated PTO speed	82.5 hp 61.5 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Drawbar performance
Max power	66.8 hp 49.8 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Gear 8 used for power test.
Max pull	8,725 lbs 3957 kg
Gear 2TD used for pull test.

Attachments

Attachment overview
Massey Ferguson 1065 loader
Massey Ferguson 1070 loader

Photos

Massey Ferguson 5455
