Massey Ferguson 5475

The Massey Ferguson 5475 is a tractor produced by Massey Ferguson. It is equipped with a 402 ci 6.6 L engine. The listed engine power is Diesel (gross): 135 hp / 100.7 kW. Transmission: Dyna-4. Operating weight: 11195 to 11905 pounds.

Engine Power

Diesel (gross): 135 hp / 100.7 kW

Fuel & Capacities

38 gal 143.8 L

Transmission

Dyna-4

Operating Weight

11195 to 11905 pounds

Overview

	2008 - 2013 5400 SeriesUtility tractor 5400 Series Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France
Original price	$62,981 (2009 Cab 2WD )
	$69,481 (2009 Cab 4WD )

Massey Ferguson 5475 Engine
Perkins 6.6L 6-cyl diesel
Fuel tank	38 gal 143.8 L
	55 gal (optional) 208.2 L
Engine details ...

Massey Ferguson 5475 Transmission
16-speed partial power shift
Transmission details ...

Massey Ferguson 5475 Power
Engine (gross)	135 hp 100.7 kW
PTO (claimed)	110 hp 82.0 kW
Drawbar (tested)	101.2 hp 75.5 kW
PTO (tested)	133.6 hp 99.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	open center
	closed center OptOptional
Pump flow	15 gpm (open center) 56.8 lpm
	26 gpm (open- optional) 98.4 lpm
	29 gpm (closed center) 109.8 lpm

Tractor hitch
Rear Type	III/II
Control	electronic draft sensing
Rear lift (at 24"/610mm)	9189 lbs 4168 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)

Dimensions & Tires
Wheelbase	112.3 inches 285 cm
Weight	11195 to 11905 pounds
Front tire	10.00-16
2WD Rear tire	460/85R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	80
	120 OptOptional
Battery CCA	775
Battery volts	12

References

5400 Series published in 2010, by Massey Ferguson

Engine

Engine Detail — 402 ci / 6.6 L Diesel

Manufacturer	Perkins 1106
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	402 ci 6.6 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier III
Power (gross)	135 hp 100.7 kW
Fuel system	common rail
Air cleaner	dry
Compression	16.2:1
Rated RPM	2200
Starter	electric
Starter volts	12

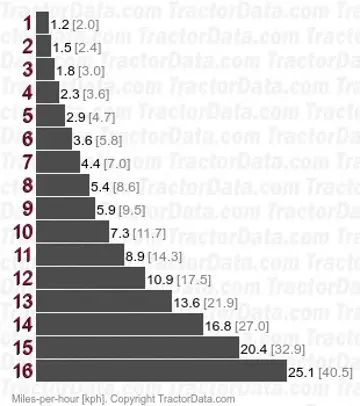

Transmission

Transmission — Dyna-4

Transmission	Dyna-4
Type	partial power shift
Gears	16 forward and reverse
Clutch	wet disc
Four power shift gears in four ranges.

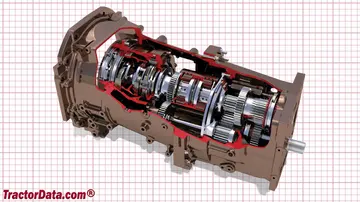

Massey Ferguson 5475 Transmission

Dimensions

Massey Ferguson 5475 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 460/85R34
4WD Standard tires (ag)	Front: 380/85R24. Rear: 460/85R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 420/85R38
2WD Optional tires (ag)	Front: 11.00-16. Rear: 460/85R38
4WD Optional tires (ag)	Front: 340/85R28. Rear: 420/85R38
4WD Optional tires (ag)	Front: 380/85R28. Rear: 460/85R38

Dimensions
Wheelbase	112.3 inches 285 cm
Length	189.7 inches 481 cm
Width	79.3 inches (min) 201 cm
	100.4 inches (max) 255 cm
Height (cab)	110.2 inches 279 cm
2WD cab Shipping weight	11195 lbs 5078 kg
4WD cab Shipping weight	11905 lbs 5400 kg

Tests

OCED Tractor Test 2539
Diesel 16-speed 4WD September 2009 - October 2009, Link: OCED Tractor Test 2539 file
PTO performance
Max power	133.6 hp 99.6 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Power at rated engine speed	118.8 hp 88.6 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Power at rated PTO speed	132.1 hp 98.5 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Drawbar performance
Max power	101.2 hp 75.5 kW
Fuel use	7.5 gal/hour 28.4 l/hour
Gear 3A used for power test.
Max pull	11870 lbs 5384 kg
Gear 1D used for pull test.

Attachments

Attachment overview
Massey Ferguson 955 loader
Massey Ferguson 950 loader

Photos

Massey Ferguson 5475

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5475 based on its 135 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5475.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (38 gal / 143.8 L).

Estimated 75% Load Fuel Burn~7 gal/hr (26.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
