Massey Ferguson 5465

The Massey Ferguson 5465 is a tractor produced by Massey Ferguson. It is equipped with a 365.2 ci 6.0 L engine. The listed engine power is Diesel (listed): 109 hp / 81.3 kW. Transmission: Dyna-4. Operating weight: 9810 to 10525 pounds.

Engine Power

Diesel (listed): 109 hp / 81.3 kW

Fuel & Capacities

40 gal 151.4 L

Transmission

Dyna-4

Operating Weight

9810 lbs 4449 kg

Overview

	2004 - 2013 Model year 2004-20082008-2013 5400 SeriesUtility tractor 5400 Series Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France

Massey Ferguson 5465 Engine
Perkins 6.0L 6-cyl diesel
Fuel tank	40 gal 151.4 L
	53.2 gal (with optional tank) 201.4 L
Engine details ...

Massey Ferguson 5465 Transmission
16-speed
Transmission details ...

Massey Ferguson 5465 Power
Engine	109 hp 81.3 kW
PTO (claimed)	95 hp 70.8 kW
Drawbar (tested)	82.6 hp 61.6 kW
PTO (tested)	109.4 hp 81.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
cab standard

Hydraulics
Type	open center
	closed OptOptional
Pressure	2684 psi 185.1 bar
Valves	2 to 4
Total flow	15 gpm (open) 56.8 lpm
	34.8 gpm (combined flow) 131.7 lpm
	29 gpm (closed) 109.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	9,240 lbs 4191 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000 OptOptional

Dimensions & Tires
Wheelbase	111 inches (2WD) 281 cm
	109.4 inches (4WD) 277 cm
Weight	9810 to 10525 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	80
	120 (optional)
Battery CCA	505
Battery volts	12

References

5400 Series published in 2006, by Massey Ferguson

Engine

Engine Detail — 365.2 ci / 6.0 L Diesel

Manufacturer	Perkins 1106
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	365.2 ci 6.0 L
Bore/Stroke	3.937x5.00 inches 100 x 127 mm
Emissions	Tier II
Power	109 hp 81.3 kW
Compression	17.5:1
Rated RPM	2200
Starter volts	12

Transmission

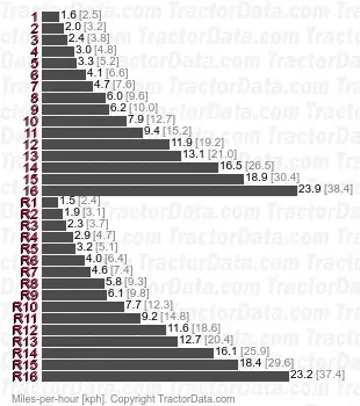

Transmission — Speedshift

Transmission	Speedshift
Gears	16 forward and reverse

Transmission — Dyna-4

Transmission	Dyna-4
Gears	16 forward and reverse

Dimensions

Massey Ferguson 5465 Tires

Dimensions
Wheelbase	111 inches (2WD) 281 cm
	109.4 inches (4WD) 277 cm
Length	177.3 inches 450 cm
Width	79.3 inches 201 cm
Height	110.2 inches 279 cm
2WD Operating weight	9810 lbs 4449 kg
4WD Operating weight	10525 lbs 4774 kg

Tests

OCED Tractor Test 2110
Diesel 16-speed 4WD November 2003 - December 2003, Link: OCED Tractor Test 2110 file
PTO performance
Max power	109.4 hp 81.6 kW
Fuel use	6.1 gal/hour 23.1 l/hour
Power at rated engine speed	97.8 hp 72.9 kW
Fuel use	6.3 gal/hour 23.8 l/hour
Power at rated PTO speed	106.1 hp 79.1 kW
Fuel use	6.3 gal/hour 23.8 l/hour
Drawbar performance
Max power	82.6 hp 61.6 kW
Fuel use	6.6 gal/hour 25.0 l/hour
Gear 7 used for power test.
Max pull	8970 lbs 4068 kg
Gear 2TA used for pull test.

Photos

Massey Ferguson 5465

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5465 based on its 109 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5465.

Estimated Continuous Field Runtime: 7.1 hrs

Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (40 gal / 151.4 L).

Estimated 75% Load Fuel Burn~5.7 gal/hr (21.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
