Massey Ferguson 5610

The Massey Ferguson 5610 is a tractor produced by Massey Ferguson. It is equipped with a 201 ci 3.3 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW. Transmission: Dyna-4. Operating weight: 8426 to 8978 pounds.

Engine Power

Diesel (listed): 100 hp / 74.6 kW

Fuel & Capacities

42.3 gal 160.1 L

Transmission

Dyna-4

Operating Weight

8426 to 8978 pounds

Overview

	2013 - 2017 5600 SeriesUtility tractor 5600 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Original price was $77,499 in 2014

Massey Ferguson 5610 Engine
AGCO Power 3.3L 3-cyl diesel
Fuel tank	42.3 gal 160.1 L
Engine details ...

Massey Ferguson 5610 Power
Engine	100 hp 74.6 kW
PTO (claimed)	75 hp 55.9 kW

Mechanical
Two- or four-wheel drive
Final drives	internal planetary
Differential lock	full locking electro-hydraulic
Steering	hydrostatic power
Hydraulic wet disc brakes
Trailer brakes	pneumatic (optional)
	hydraulic (optional)
Cab standard with air-conditioning. Optional mechanical cab suspension. AGCOMMAND (optional)

Hydraulics
Type	open center
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Pump flow	15 gpm 56.8 lpm
	26 gpm (Twin Flow) 98.4 lpm

Tractor hitch
Rear Type	II
Control	electronic lower link draft control
Rear lift (at ends)	9480 lbs 4300 kg
Rear lift (at 24"/610mm)	7100 lbs 3220 kg
Front Hitch	II (optional)
Front lift (at ends)	5500 lbs 2494 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/540E (1.375)
	540/540E/1000 (1.375)
Engine RPM	540@1920
	540E@1964
	1000@1560

Dimensions & Tires
Wheelbase	97.1 inches 246 cm
Weight	8426 to 8978 pounds
Rear tire	16.9R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery volts	12

Engine

Engine Detail — 201 ci / 3.3 L Diesel

Manufacturer	AGCO Power 33 AWI
Configuration	turbocharged intercooled diesel, 3-cylinder 12-valve, liquid-cooled
Displacement	201 ci 3.3 L
Bore/Stroke	4.25x4.72 inches 108 x 120 mm
Emissions	Interim Tier IV
Emission control	external exhaust gas recirculation with diesel oxidation catalyst (DOC) (EGR)
Power	100 hp 74.6 kW
Maximum Power	105 hp 78.3 kW
Fuel system	high pressure common rail direct injection
Air cleaner	dual stage dry
Pre-heating	intake heater
Rated RPM	2200
Idle RPM	850-2402
Torque	304 lb-ft 412.2 Nm
Torque RPM	1600
Starter	electric
Starter volts	12
Oil capacity	13.7 qts 13.0 L
Coolant capacity	15.3 qts 14.5 L

Transmission

Transmission options
16-speed four-speed power shift with power shuttle
32-speed creeper

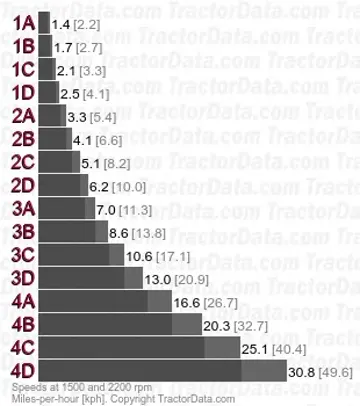

Transmission — Dyna-4

Transmission	Dyna-4
Type	four-speed power shift with power shuttle
Gears	16 forward and reverse
Clutch	wet disc
Oil capacity	68.7 qts 65.0 L
With 16.9-38 R1 rear tires.

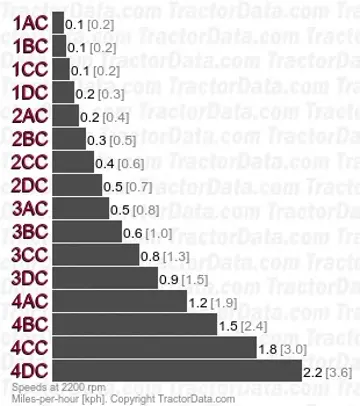

Type	creeper
Gears	32 forward and reverse

Dimensions

Massey Ferguson 5610 Tires
Ag rear	16.9R38

Dimensions
Wheelbase	97.1 inches 246 cm
Length	167.5 inches 425 cm
Width	79.3 inches (min) 201 cm
Height (cab)	111.3 inches 282 cm
Ground clearance	17.6 inches 44 cm
Flange rear axle

Massey Ferguson 5610 Weight
	8426 lbs (2WD) 3822 kg
	8978 lbs (4WD) 4072 kg
Max capacity	21500 lbs 9752 kg
2WD Max front axle	6085 lbs 2760 kg
4WD Max front axle	10500 lbs 4762 kg
Max rear axle	11000 lbs 4989 kg

Attachments

Attachment overview
Massey Ferguson 931 loader
Massey Ferguson 941 loader
Massey Ferguson 946 loader

Photos

Massey Ferguson 5610 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5610 based on its 100 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5610.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (42.3 gal / 160.1 L).

Estimated 75% Load Fuel Burn~5.2 gal/hr (19.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
