Massey Ferguson 593

The Massey Ferguson 593 is a tractor produced by Massey Ferguson. It is equipped with a 268.6 ci 4.4 L engine. The listed engine power is Diesel (gross): 89 hp / 66.4 kW. Transmission: partial sync. Operating weight: 6812 to 8025 pounds.

Engine Power

Diesel (gross): 89 hp / 66.4 kW

Fuel & Capacities

27.7 gal 104.8 L

Transmission

partial sync

Operating Weight

6812 to 8025 pounds

Overview

	2006 - 2010 500 SeriesUtility tractor 500 Series Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Brazil

Variants
593LP	low-profile

Massey Ferguson 593 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	27.7 gal 104.8 L
Engine details ...

Massey Ferguson 593 Transmission
12-speed
Transmission details ...

Massey Ferguson 593 Power
Engine (gross)	89 hp 66.4 kW
PTO (claimed)	77 hp 57.4 kW
PTO (tested)	85.87 hp 64.0 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Independent hydraulic wet disc brakes
Two-post foldable ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Valves	2 or 3
Pump flow	17 gpm 64.3 lpm
Total flow	25 gpm 94.6 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	4,199 lbs 1904 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	90.2 inches 229 cm
4WD Wheelbase	93.7 inches 237 cm
Weight	6812 to 8025 pounds
Front tire	10.00-16
2WD Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 268.6 ci / 4.4 L Diesel

Manufacturer	Perkins 1104C-44T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	268.6 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Power (gross)	89 hp 66.4 kW
Air cleaner	dual paper elements
Compression	18.2:1
Rated RPM	2200
Starter volts	12

Transmission

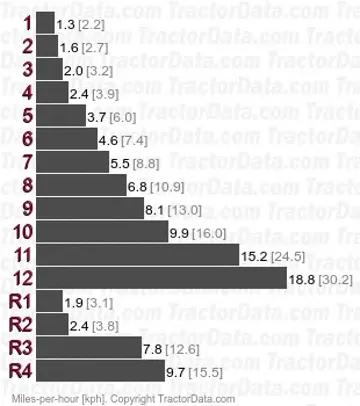

Transmission — partial sync

Transmission	partial sync
Gears	12 forward and 4 reverse
Clutch	330mm dry disc

Dimensions

Massey Ferguson 593 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4-30
4WD Standard tires (ag)	Front: 13.6-24. Rear: 18.4-30

Dimensions
2WD Wheelbase	90.2 inches 229 cm
4WD Wheelbase	93.7 inches 237 cm
Length	142.8 inches (2WD) 362 cm
	140.9 inches (2WD LP) 357 cm
	147 inches (4WD) 373 cm
	143.9 inches (4WD LP) 365 cm
Width	83.7 inches 212 cm
	78.5 inches (LP) 199 cm
Ground clearance	13.8 inches 35 cm
	13 inches (LP) 33 cm
2WD Front tread	54.7 to 78.3 inches 138 to 198 cm
4WD Front tread	66.1 to 83.5 inches 167 to 212 cm
Rear tread	64 to 88.1 inches 162 to 223 cm

Massey Ferguson 593 Weight
2WD ROPS Shipping	6812 lbs 3089 kg
4WD ROPS Shipping	7275 lbs 3299 kg
2WD cab Shipping	7562 lbs 3430 kg
4WD cab Shipping	8025 lbs 3640 kg
4WD ROPS Operating	7435 lbs 3372 kg

Massey Ferguson 593 Height
LP	101.5 inches 257 cm
ROPS	100.5 inches 255 cm
Cab	106.5 inches 270 cm

Tests

Nebraska Tractor Test 1851
Diesel 12-speed 4WD May 25 - 26, 2005 Link: Nebraska Tractor Test 1851 file
PTO performance
Max power	85.87 hp 64.0 kW
Fuel use	5.2 gal/hour 19.7 l/hour
Power at rated engine speed	78.81 hp 58.8 kW
Fuel use	5.0 gal/hour 18.9 l/hour
Power at rated PTO speed	84.16 hp 62.8 kW
Fuel use	4.9 gal/hour 18.5 l/hour

Photos

Massey Ferguson 593

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 593 based on its 89 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 593.

Estimated Continuous Field Runtime: 6 hrs

Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (27.7 gal / 104.9 L).

Estimated 75% Load Fuel Burn~4.6 gal/hr (17.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
