Massey Ferguson 5S.135

The Massey Ferguson 5S.135 is a tractor produced by Massey Ferguson. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (listed): 135 hp / 100.7 kW. Transmission: Dyna-6. Operating weight: 10582 lbs 4799 kg.

Engine Power

Diesel (listed): 135 hp / 100.7 kW

Fuel & Capacities

52.8 gal 199.8 L

Transmission

Dyna-6

Operating Weight

10582 lbs 4799 kg

Overview

	2021 - 5S SeriesUtility tractor
2021 -
5S Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 5S.135 Engine
AGCO Power 4.4L 4-cyl diesel
Fuel tank	52.8 gal 199.8 L
Exhaust fluid (DEF)	5.3 gal 20.1 L
Engine details ...

Massey Ferguson 5S.135 Power
Engine	135 hp 100.7 kW

Mechanical
Four-wheel drive
Differential lock	hydraulic front and rear
Power steering
Electro-hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2901 psi 200.0 bar
Valves	2 to 4
Pump flow	15.3 gpm (open) 57.9 lpm
	26.4 gpm (open optional) 99.9 lpm
	29.1 gpm (closed) 110.1 lpm
Steering flow	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type	III
Control	position and draft control
Rear lift (at ends)	13228 lbs 6000 kg
Front lift	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E
	540/540E/1000
Engine RPM	540@1920
	540E@1560
	1000@1960
Front PTO	independent OptOptional
Clutch	electro-hydraulic wet disc
Front PTO Type	1000

Dimensions & Tires
Wheelbase	100.4 inches 255 cm
Weight	10582 lbs 4799 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References

MF 5S published in 2020, by Massey Ferguson

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	AGCO Power
Configuration	turbocharged intercooled diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.25x4.72 inches 108 x 120 mm
Emissions	Stage 5
Power	135 hp 100.7 kW
Rated RPM	2000
Torque	398 lb-ft 539.7 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed four-speed power shift
24-speed six-speed power shift

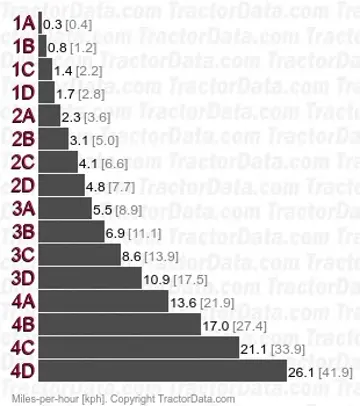

Transmission — Dyna-4

Transmission	Dyna-4
Type	four-speed power shift
Gears	16 forward and reverse
Four power shift gears (A-D) in four ranges (1-4).

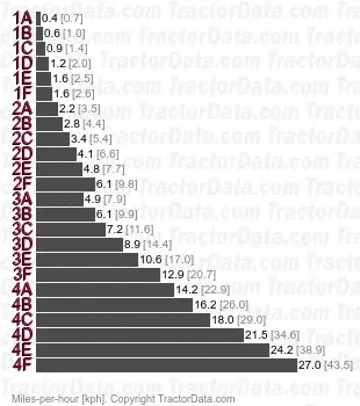

Transmission — Dyna-6

Transmission	Dyna-6
Type	six-speed power shift
Gears	24 forward and reverse
Six power shift gears (A-F) in four ranges (1-4).

Dimensions

Massey Ferguson 5S.135 Tires

Dimensions
Wheelbase	100.4 inches 255 cm
Length	170.5 inches 433 cm
Width	79.5 inches*Minimum width. 201 cm
Height (cab)	108.3 inches (standard) 275 cm
	105 inches (low-profile) 266 cm
Weight	10582 lbs 4799 kg
Max weight	20944 lbs 9500 kg
Ground clearance	10.8 inches 27 cm

Photos

Massey Ferguson 5S.135

Massey Ferguson 5S.135 cab interior.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5S.135 based on its 135 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5S.135.

Estimated Continuous Field Runtime: 7.5 hrs

Approximately 7.5 hours of continuous field operation at ~75% rated power on a full tank (52.8 gal / 199.9 L).

Estimated 75% Load Fuel Burn~7 gal/hr (26.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
