Massey Ferguson 5S.145

The Massey Ferguson 5S.145 is a tractor produced by Massey Ferguson. It is equipped with a 268.5 ci 4.4 L engine. The rated power output is 145 hp 108.1 kW. Transmission: Dyna-6. Operating weight: 10582 lbs 4799 kg.

Overview

	2021 - 5S SeriesUtility tractor
2021 -
5S Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 5S.145 Engine
AGCO Power 4.4L 4-cyl diesel
Fuel tank	52.8 gal 199.8 L
Exhaust fluid (DEF)	5.3 gal 20.1 L
Engine details ...

Massey Ferguson 5S.145 Power
Engine	145 hp 108.1 kW

Mechanical
Four-wheel drive
Differential lock	hydraulic front and rear
Power steering
Electro-hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2901 psi 200.0 bar
Valves	2 to 4
Pump flow	15.3 gpm (open) 57.9 lpm
	26.4 gpm (open optional) 99.9 lpm
	29.1 gpm (closed) 110.1 lpm
Steering flow	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type	III
Control	position and draft control
Rear lift (at ends)	13228 lbs 6000 kg
Front lift	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E
	540/540E/1000
Engine RPM	540@1920
	540E@1560
	1000@1960
Front PTO	independent OptOptional
Clutch	electro-hydraulic wet disc
Front PTO Type	1000

Dimensions & Tires
Wheelbase	100.4 inches 255 cm
Weight	10582 lbs 4799 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
MF 5S published in 2020, by Massey Ferguson

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	AGCO Power
Configuration	turbocharged intercooled diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.25x4.72 inches 108 x 120 mm
Emissions	Stage 5
Power	145 hp 108.1 kW
Rated RPM	2000
Torque	406 lb-ft 550.5 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed four-speed power shift
24-speed six-speed power shift

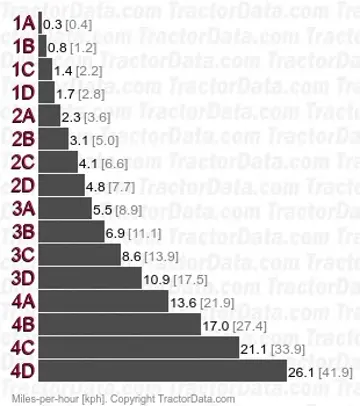

Transmission — Dyna-4

Transmission	Dyna-4
Type	four-speed power shift
Gears	16 forward and reverse
Four power shift gears (A-D) in four ranges (1-4).

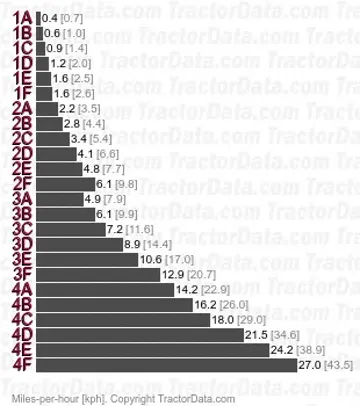

Transmission — Dyna-6

Transmission	Dyna-6
Type	six-speed power shift
Gears	24 forward and reverse
Six power shift gears (A-F) in four ranges (1-4).

Dimensions

Massey Ferguson 5S.145 Tires

Dimensions
Wheelbase	100.4 inches 255 cm
Length	170.5 inches 433 cm
Width	79.5 inches*Minimum width. 201 cm
Height (cab)	108.3 inches (standard) 275 cm
	105 inches (low-profile) 266 cm
Weight	10582 lbs 4799 kg
Max weight	20944 lbs 9500 kg
Ground clearance	10.8 inches 27 cm

Photos

Massey Ferguson 5S.145 tractor photo
