Massey Ferguson 7170

The Massey Ferguson 7170 is a tractor produced by Massey Ferguson. It is equipped with a 402.8 ci 6.6 L engine. The listed engine power is Diesel (listed): 170 hp / 126.8 kW. Transmission: 12 forward and 5 reverse. Operating weight: 20610 lbs 9348 kg.

Engine Power

Diesel (listed): 170 hp / 126.8 kW

Fuel & Capacities

111 gal 420.1 L

Transmission

12 forward and 5 reverse

Operating Weight

20610 lbs 9348 kg

Overview

	2009 - ???? 7100 SeriesRow-Crop tractor
2009 - ????
7100 Series
Row-Crop tractor

2009 - ????
7100 Series
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Built in Canoas, Brazil

Massey Ferguson 7170 Engine
AGCO SISU Power 6.6L 6-cyl diesel
Fuel tank	111 gal 420.1 L
Engine details ...

Massey Ferguson 7170 Transmission
12-speed synchromesh
Transmission details ...

Massey Ferguson 7170 Power
Engine	170 hp 126.8 kW

Mechanical
Four-wheel drive
Final drives	planetary
Steering	hydrostatic power
Hydraulic wet disc brakes
Two-post ROPS with canopy. Cab available with air-conditioning. Auto Guide 3000 (optional); AGCOCOMMAND (optional)

Hydraulics
Type	load sensing
Pressure	2900 psi 200.0 bar
Valves	4
Pump flow	36.46 gpm 138.0 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	10360 lbs 4699 kg
	12130 lbs (optional) 5502 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Engine RPM	540@2143
	1000@2160

Dimensions & Tires
Wheelbase	120.9 inches 307 cm
Front tire	16.9-28
Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Charging amps	120
Charging volts	12
Battery volts	12
Battery AH	170

Engine

	2009 - ???? 7100 SeriesRow-Crop tractor
2009 - ????
7100 Series
Row-Crop tractor

2009 - ????
7100 Series
Row-Crop tractor

Engine Detail — 402.8 ci / 6.6 L Diesel

Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
AGCO SISU Power 620 DS
Displacement	402.8 ci 6.6 L
Power	170 hp 126.8 kW
Rated RPM	2200
Torque	501.5 lb-ft 680.0 Nm
Torque RPM	1400

Transmission

	2009 - ???? 7100 SeriesRow-Crop tractor
2009 - ????
7100 Series
Row-Crop tractor

2009 - ????
7100 Series
Row-Crop tractor

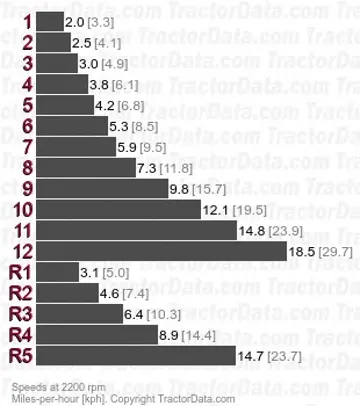

Transmission — 12 forward and 5 reverse synchromesh

Type	synchromesh
Gears	12 forward and 5 reverse
With 20.8-38R1 rear tires.

Dimensions

	2009 - ???? 7100 SeriesRow-Crop tractor
2009 - ????
7100 Series
Row-Crop tractor

2009 - ????
7100 Series
Row-Crop tractor

Massey Ferguson 7170 Tires
Standard tires (ag)	Front: 16.9-28. Rear: 20.8-38
Optional tires (ag)	Front: 14.9-28. Rear: 23.1-30
	Front: 18.4-26. Rear: 24.5-32
	Front: 14.9-28. Rear: 18.4-38
	Front: 18.4-26. Rear: 18.4-38
	Front: 18.4-26. Rear: 20.8-38
	Front: 540/65R28. Rear: 650/75R32
	Front: 600/60-30.5. Rear: 710/65-38

Dimensions
Wheelbase	120.9 inches 307 cm
Length	200 inches 508 cm
Height	123.6 inches 313 cm
Cab Ballasted weight	20610 lbs 9348 kg
ROPS Ballasted weight	20130 lbs 9130 kg

Photos

Massey Ferguson 7170 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 7170 based on its 170 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 7170.

Estimated Continuous Field Runtime: 12.6 hrs

Approximately 12.6 hours of continuous field operation at ~75% rated power on a full tank (111 gal / 420.2 L).

Estimated 75% Load Fuel Burn~8.8 gal/hr (33.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
