John Deere 6155M

The John Deere 6155M is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The listed engine power is Diesel (gross): 155 hp / 115.6 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: AutoQuad PLUS. Operating weight: 13073 lbs 5929 kg.

Overview

	2015 - 2025 Model year 2015-20202020-2025 6M SeriesRow-Crop tractor 6M Series Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 6155M Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	71 gal 268.7 L
Exhaust fluid (DEF)	4 gal 15.1 L
Engine details ...

John Deere 6155M Power
Engine (gross)	155 hp 115.6 kW
Engine (max)	164 hp 122.3 kW
PTO (claimed)	123 hp 91.7 kW
Drawbar (tested)	119.5 hp 89.1 kW
PTO (tested)	146.7 hp 109.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditoning. Two-post folding ROPS available.

Hydraulics
Type	closed-center pressure-and-flow compensated
Pressure	2900 psi 200.0 bar
Rear valves	3 OptOptional
Mid valves	3 OptOptional
Pump flow	30 gpm 113.6 lpm
SCV flow	26.4 gpm 99.9 lpm

Tractor hitch
Rear Type	IIIN/II
Control	electronic lower-link draft sensing
Rear lift	8198 lbs 3718 kg
	9193 lbsOptOptional 4169 kg
Drawbar	Cat. 2

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
	540
Engine RPM	540@1932
	1000@1932

Dimensions & Tires
Wheelbase	108.9 inches 276 cm
Weight	13073 lbs 5929 kg
Front tire	10.00-16
2WD Rear tire	460/85R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
	200 OptOptional
Charging volts	14
Battery volts	12

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere PowerTech PVS
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	414 ci 6.8 L
Bore/Stroke	4.15x5.00 inches 105 x 127 mm
Emissions	Tier IV
Emission control	cooled exhaust-gas recirculation, diesel particulate filter, and selective catalytic reduction
Rated Power (gross)	155 hp 115.6 kW
Maximum Power (gross)	164 hp 122.3 kW
Rated RPM	2100
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW
Coolant capacity	29.8 qts 28.2 L

Transmission

Transmission options
16-speed four-speed power shift
20-speed four-speed power shift

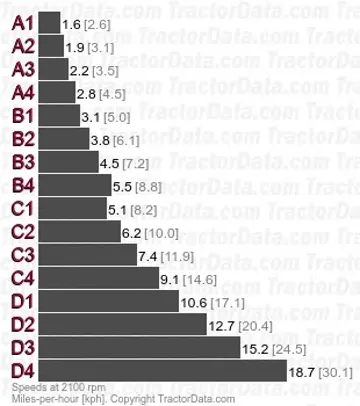

Transmission — PowrQuad

Transmission	PowrQuad
Type	four-speed power shift
Gears	16 forward and reverse
Clutch	wet disc
Four power-shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

Transmission — PowrQuad

Transmission	PowrQuad
Type	four-speed power shift
Gears	20 forward and reverse
Clutch	wet disc
Four power-shift gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

Transmission — AutoQuad PLUS

Transmission	AutoQuad PLUS
Type	four-speed power shift
Gears	20 forward and reverse
Clutch	wet disc
Four push-button gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. AutoShift mode enables programmable automatic gear shifting.
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

Dimensions

John Deere 6155M Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 460/85R38
4WD Standard tires (ag)	Front: 380/85R28. Rear: 460/85R38

Dimensions
Wheelbase	108.9 inches 276 cm
Length	186.1 inches 472 cm
Width	100.4 inches 255 cm
Height (ROPS)	114.6 inches 291 cm
Height (cab)	114.9 inches 291 cm
Clearance (front axle)	23.9 inches 60 cm
Flange rear axle
Rack-and-pinion rear axle	3.385 by 100.6 inches 85 by 2555 mm
2WD Front tread	63.3 to 87.4 inches 160 to 221 cm

John Deere 6155M Weight
Shipping	13073 lbs 5929 kg
Max capacity	24250 lbs 10999 kg
Max Drawbar	5400 lbs 2449 kg

Tests

OCED Tractor Test 3073
Diesel PowrQuad Plus 4WD March 2017 - June 2017, Link: OCED Tractor Test 3073 file
PTO performance
Max power	146.7 hp 109.4 kW
Fuel use	8.2 gal/hour 31.0 l/hour
Power at rated engine speed	131.8 hp 98.3 kW
Fuel use	8.0 gal/hour 30.3 l/hour
Power at rated PTO speed	145.6 hp 108.6 kW
Fuel use	8.5 gal/hour 32.2 l/hour
Drawbar performance
Max power	119.5 hp 89.1 kW
Fuel use	8.3 gal/hour 31.4 l/hour
Max pull	13875 lbs 6293 kg
