Massey Ferguson 8270
The Massey Ferguson 8270 is a tractor produced by Massey Ferguson. It is equipped with a 513.8 ci 8.4 L engine. The rated power output is 205.4 hp 153.2 kW. Transmission: 18 forward and 9 reverse. Operating weight: 21,595 lbs 9795 kg.
Engine Power
165.1 hp
123.1 kW
Fuel & Capacities
120 gal
454.2 L
Transmission
18 forward and 9 reverse
Operating Weight
21,595 lbs
9795 kg
Massey Ferguson 8270 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1999 - 2003
8200 SeriesRow-Crop tractor |
|---|---|
1999 - 2003 | |
8200 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Massey Ferguson |
Row-Crop tractor | |
Built in Germany | |
Original price | $118,100 |
Massey Ferguson 8270 Engine | |
|---|---|
Valmet 8.4L 6-cyl diesel | |
Engine details ...  |
Massey Ferguson 8270 Transmission | |
|---|---|
18-speed full power shift | |
Transmission details ...  |
Massey Ferguson 8270 Power | |
|---|---|
PTO (claimed) | 200 hp
149.1 kW |
Drawbar (tested) | 165.1 hp
123.1 kW |
PTO (tested) | 216.7 hp
161.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Independent hydraulic wet disc brakes | |
Cab standard | |
Capacity | |
|---|---|
Fuel | 120 gal
454.2 L |
Hydraulic system | 39.6 gal
149.9 L |
Hydraulics | |
|---|---|
Type | PFC |
Capacity | 39.6 gal
149.9 L |
Valves | 4 |
Tractor hitch | |
|---|---|
Rear Type | III |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 121 inches
307 cm |
Weight | 21,595 lbs
9795 kg |
Front tire | 16.9R-28 |
Rear tire | 18.4R-42 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson |
Engine
Engine Detail — 513.8 ci / 8.4 L Diesel
Manufacturer | Valmet |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 513.8 ci
8.4 L |
Bore/Stroke | 4.370x5.709 inches
111 x 145 mm |
Air cleaner | dual paper elements |
Compression | 16.5:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Coolant capacity | 32 qts
30.3 L |
Transmission

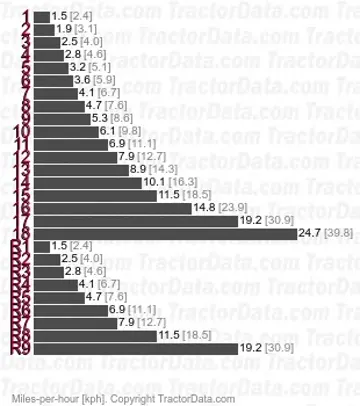

Transmission — 18 forward and 9 reverse full power shift
Type | full power shift |
Gears | 18 forward and 9 reverse |
Clutch | wet disc |
 | |
Dimensions
Massey Ferguson 8270 Tires | |
|---|---|
Ag front | 16.9R-28 |
Ag rear | 18.4R-42 |
Dimensions | |
|---|---|
Wheelbase | 121 inches
307 cm |
Operating weight | 21,595 lbs
9795 kg |
Tests
OCED Tractor Test 1770 | |
|---|---|
Diesel 18-speed 4WD
April 1 - May 1, 1998
Link: OCED Tractor Test 1770 file | |
PTO performance | |
Max power | 216.7 hp
161.6 kW |
Fuel use | 12.4 gal/hour
46.9 l/hour |
Power at rated engine speed | 205.4 hp
153.2 kW |
Fuel use | 13.1 gal/hour
49.6 l/hour |
Power at rated PTO speed | 212.3 hp
158.3 kW |
Fuel use | 12.9 gal/hour
48.8 l/hour |
Drawbar performance | |
Max power | 165.1 hp
123.1 kW |
Fuel use | 13.2 gal/hour
50.0 l/hour |
Gear 10 used for power test. | |
Max pull | 20765 lbs
9419 kg |
Gear 6 used for pull test. | |
Photos
Massey Ferguson 8270
