Massey Ferguson 6718S

The Massey Ferguson 6718S is a tractor produced by Massey Ferguson. It is equipped with a 299 ci 4.9 L engine. The rated power output is 167 hp 124.5 kW. Transmission: Dyna-VT. Operating weight: 15432 lbs 6999 kg.

Overview

	2017 - 2021 6700S SeriesUtility tractor
2017 - 2021
6700S Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 6718S Engine
AGCO Power 4.9L 4-cyl diesel
Fuel tank	67 gal 253.6 L
Exhaust fluid (DEF)	7.9 gal 29.9 L
Engine details ...

Massey Ferguson 6718S Power
Engine	167 hp 124.5 kW
PTO (claimed)	155 hp 115.6 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	pneumatic OptOptional
	hydraulic OptOptional
Cab standard with air-conditioning. Available cab suspension.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2900 psi 200.0 bar
Rear valves	5 OptOptional
Front valves	2 OptOptional
Pump flow	26.4 gpm (open) 99.9 lpm
	29.1 gpm (closed) 110.1 lpm
	50 gpmOptOptional 189.2 lpm

Tractor hitch
Rear Type	III

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540E@1530
	540@1980
	1000E@1570
	1000@2030
Front PTO	independent OptOptional
Front PTO Type	1000
Engine RPM	1000@1920

Dimensions & Tires
Wheelbase	105.1 inches 266 cm
Weight	15432 lbs 6999 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
MF 6700 S published in 2018, by Massey Ferguson
MF 6700 S published in 2019, by Massey Ferguson

Engine

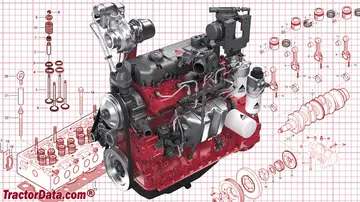

Engine Detail — 299 ci / 4.9 L Diesel

Manufacturer	AGCO Power 49 AWF
Configuration	intercooled turbocharged diesel, 4-cylinder 16-valve, liquid-cooled inline
Displacement	299 ci 4.9 L
Bore/Stroke	4.252x5.276 inches 108 x 134 mm
Emissions	Stage V
Emission control	SCR/DEF/DOC
Power	167 hp 124.5 kW
Maximum Power	175 hp 130.5 kW
Fuel system	high-pressure common rail direct injection
Rated RPM	2100
Torque	620 lb-ft 840.7 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Massey Ferguson 6718S Engine

Transmission

Transmission options
24-speed six-speed power shift
continuously variable transmission (CVT)

Transmission — Dyna-6

Transmission	Dyna-6
Type	six-speed power shift
Gears	24 forward and reverse
Clutch	wet disc

Transmission — Dyna-VT

Transmission	Dyna-VT
Type	continuously variable transmission (CVT)
Gears	infinite forward and reverse

Dimensions

Massey Ferguson 6718S Tires

Dimensions
Wheelbase	105.1 inches 266 cm
Length	194 inches 492 cm
Width	72 inches*Minimum 182 cm
Height (cab)	118.9 inches 302 cm
Weight	15432 lbs 6999 kg
Max weight	27558 lbs 12500 kg

Photos

Massey Ferguson 6718S tractor photo
