Massey Ferguson 2622

The Massey Ferguson 2622 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Tuff Torq K57. Operating weight: 580 lbs 263 kg.

Engine Power

Gasoline (gross): 22 hp / 16.4 kW

Fuel & Capacities

3.6 gal 13.6 L

Transmission

Tuff Torq K57

Operating Weight

580 lbs 263 kg

Overview

	2011 - 2013 2600 SeriesLawn tractorSimplicity built 2600 Series Lawn tractor Simplicity built

Production
Distributor	Massey Ferguson
Manufacturer	Simplicity
Lawn tractor

Variants
Broadmoor 22/44	similar Simplicity model

Massey Ferguson 2622 Engine
22HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	3.6 gal 13.6 L
Engine details ...

Massey Ferguson 2622 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	580 lbs 263 kg
Front tire	15x6.0-6
Rear tire	22x10.0-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

References

Operator's Manual 2600 Series (1750404) published in 2012
Lawn & Garden Equipment published in 2011, by Massey Ferguson

Engine

Engine Detail — 724 cc / 44.18 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.18 ci
Bore/Stroke	3.12x2.89 inches 79 x 73 mm
Power (gross)	22 hp 16.4 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	50 h

Transmission

Transmission — Tuff Torq K57

Transmission	Tuff Torq K57
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Massey Ferguson 2622 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	22x10.0-10

Dimensions
Wheelbase	53 inches 134 cm
Length	70 inches 177 cm
Height (steering wheel)	43 inches 109 cm
Weight	580 lbs 263 kg
Flange rear axle	0.75 inch diameter 19 mm

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Massey Ferguson
	manual lift
Cutting width	44 inches 111 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

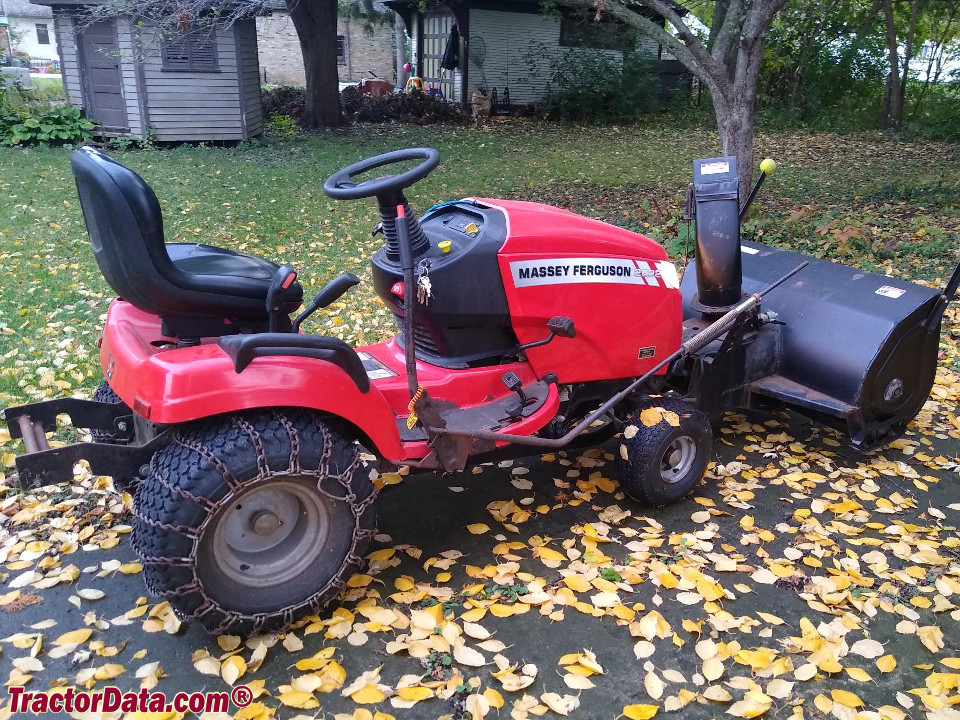

Massey Ferguson 2622

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson Lawn Tractors Massey Ferguson 2622 based on its 22 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 2622.

Estimated Continuous Field Runtime: 3.1 hrs

Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (3.6 gal / 13.6 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Massey Ferguson Lawn Tractors Massey Ferguson 2622 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 2622.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)22 hp

Kilowatts (kW)16.4 kW

Metric Horsepower (PS / CV)22.3 PS
