Massey Ferguson 1855
The Massey Ferguson 1855 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 781 cc 47.7 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Sundstrand HT 90. Operating weight: 860 to 950 pounds.
Engine Power
Gasoline (gross): 18 hp / 13.4 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Sundstrand HT 90
Operating Weight
860 to 950 pounds
Overview
 | 1977 - 1978
Garden tractorSnapper built
Garden tractor
Snapper built |
|---|
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Snapper |
Garden tractor | |
Built in Fort Worth, Texas, USA | |
Variants | |
|---|---|
1855 | similar Snapper model |
Massey Ferguson 1855 Engine | |
|---|---|
18HP Onan 781cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Massey Ferguson 1855 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Rear lift (at ends) | 650 lbs
294 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 2000 |
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 52 inches
132 cm |
Weight | 860 to 950 pounds |
Front tire | 18x8.50-8 |
Rear tire | 26x12.00-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The MF 1655 & 1855 are new published in 1977, by Massey Ferguson | |
Operator's Manual 1655 and 1855 (1448 382 M2) published in 1977 | |
MF 1855 Product Memorandum published in 1977, by Massey Ferguson |
Engine
Engine Detail — 781 cc / 47.7 ci Gasoline
Manufacturer | Onan B48M |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft opposed-twin |
Displacement | 781 cc
47.7 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power (gross) | 18 hp
13.4 kW |
Compression | 6.7:1 |
Idle RPM | 1800-3650 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.005 inches (cold)
0.127 mm |
Exhaust valve clearance | 0.013 inches (cold)
0.330 mm |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Sundstrand HT 90
Transmission | Sundstrand HT 90 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 5 qts
4.7 L |
 | |
Dimensions
Massey Ferguson 1855 Tires | |
|---|---|
Lawn/turf front | 18x8.50-8 |
Lawn/turf rear | 26x12.00-12 |
Dimensions | |
|---|---|
Wheelbase | 52 inches
132 cm |
Length | 78 inches
198 cm |
Width | 45.5 inches
115 cm |
Height (steering wheel) | 48 inches
121 cm |
1855 Weight | 860 lbs
390 kg |
1855A Weight | 950 lbs
430 kg |
Ground clearance | 16 inches (at steps)
40 cm |
Clearance (rear axle) | 8 inches
20 cm |
Clearance (drawbar) | 8.25 inches
20 cm |
Front tread | 32 inches
81 cm |
Rear tread | 33.5 inches
85 cm |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
Snowblower | |
Blade | |
The Massey 1855 was compatible with the 4250 and 4850 tillers. |
Photos

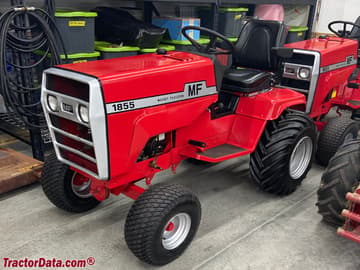

Massey Ferguson 1855
Recommended Implements & Sizing Guide
Engineering recommendations for Massey Ferguson Lawn Tractors Massey Ferguson 1855 based on its 18 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 1855.
Estimated Continuous Field Runtime: 3.7 hrs
Approximately 3.7 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Massey Ferguson Lawn Tractors Massey Ferguson 1855 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 1855.
Converted Equivalents:
Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS
