Massey Ferguson 7

The Massey Ferguson 7 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 245 cc 15 ci engine. The rated power output is 7 hp 5.2 kW. Transmission: infinite forward and reverse. Operating weight: 420 to 480 pounds.

Overview

	1968 - 1973 Lawn tractorAMF built
1968 - 1973
Lawn tractor
AMF built

1968 - 1973
Lawn tractor
AMF built

Production
Distributor	Massey Ferguson
Manufacturer	AMF
Lawn tractor
Built in Des Moines, Iowa, USA

Massey Ferguson 7 Engine
7HP Tecumseh 245cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	41 inches 104 cm
Weight	420 to 480 pounds
Front tire	6.00x6-15
Rear tire	8.50x8-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
MF 7 Lawn Tractor published in 1970, by Massey Ferguson
Lawn and Garden Tractors published in 1969, by Massey Ferguson

Engine

	1968 - 1973 Lawn tractorAMF built
1968 - 1973
Lawn tractor
AMF built

1968 - 1973
Lawn tractor
AMF built

Engine Detail — 245 cc / 15 ci Gasoline

Manufacturer	Tecumseh H70
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	245 cc 15 ci
Bore/Stroke	2.75x2.531 inches 70 x 64 mm
Power	7 hp 5.2 kW
Rated RPM	3600
Starter	manual recoil
	electric OptOptional
Starter volts	12

Transmission

	1968 - 1973 Lawn tractorAMF built
1968 - 1973
Lawn tractor
AMF built

1968 - 1973
Lawn tractor
AMF built

Transmission options
3-speed gear
hydrostatic

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

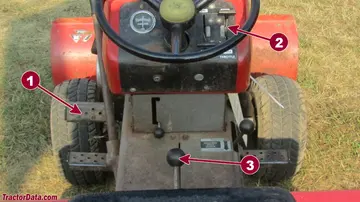

7 Transmission Controls
1	Clutch/brake
2	Throttle
3	Gear shift

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

	1968 - 1973 Lawn tractorAMF built
1968 - 1973
Lawn tractor
AMF built

1968 - 1973
Lawn tractor
AMF built

Massey Ferguson 7 Tires
Lawn/turf front	6.00x6-15
Lawn/turf rear	8.50x8-18

Dimensions
Wheelbase	41 inches 104 cm
Length	58.5 inches 148 cm
Width	32.5 inches 82 cm
Height (steering wheel)	36.5 inches 92 cm
Height (hood)	32 inches 81 cm

Massey Ferguson 7 Weight
	420 lbs (recoil) 190 kg
	455 lbs (electric) 206 kg
	480 lbs (hydro) 217 kg

Attachments

	1968 - 1973 Lawn tractorAMF built
1968 - 1973
Lawn tractor
AMF built

1968 - 1973
Lawn tractor
AMF built

Attachment overview
34" mid-mount mower deck
Snowblower
Blade

34" Mower deck
Type	mid-mount Massey Ferguson
	2-blade with manual lift
Cutting width	34 inches 86 cm
Cut height	1.5 to 4.25 inch 3 to 10 cm

Photos

Massey Ferguson 7 garden mower.

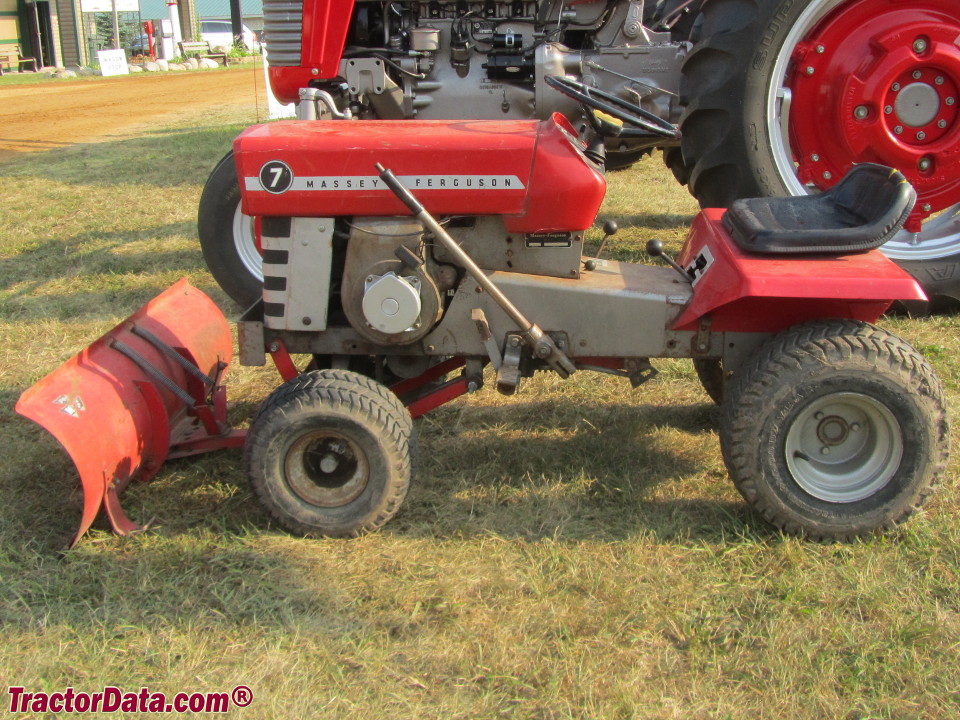

Massey Ferguson 7 with front blade.

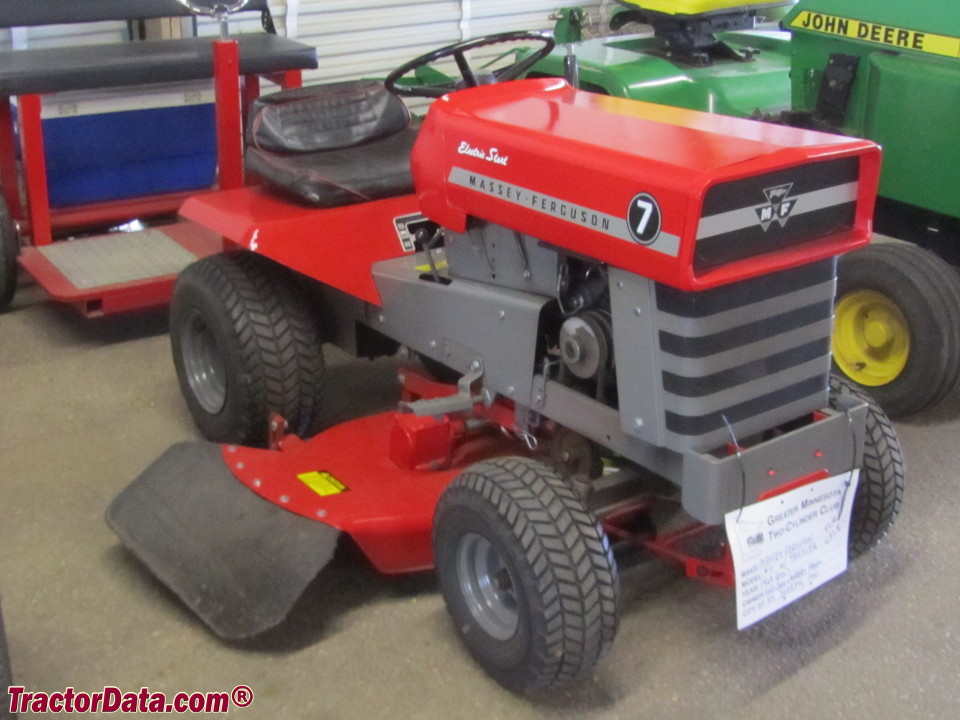

Electric start Massey Ferguson 7 with mower deck.

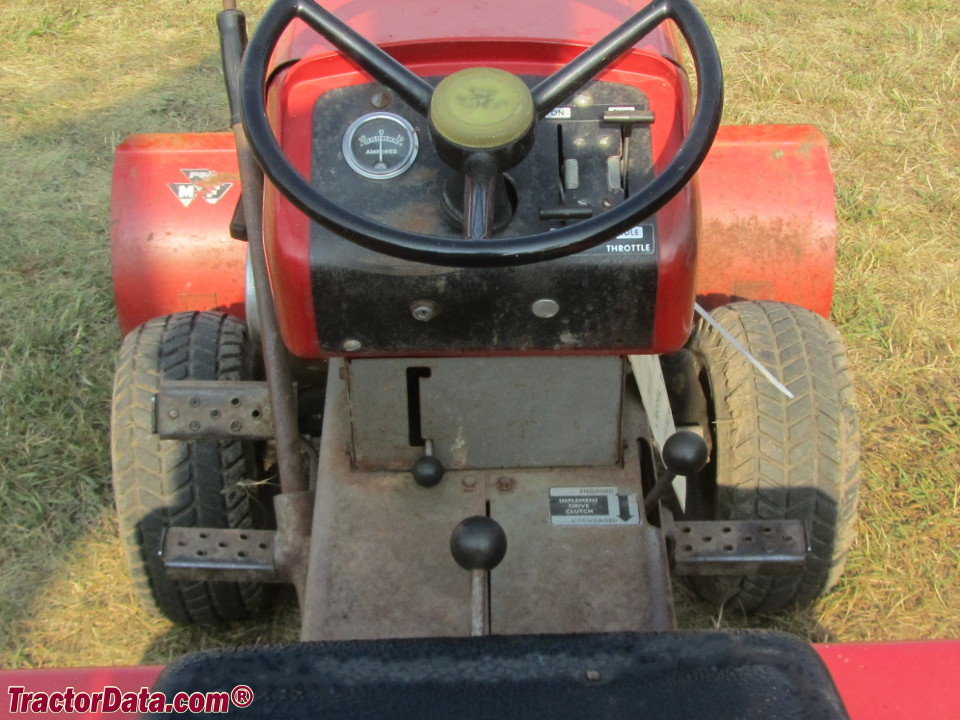

Massey Ferguson 7 operator station and controls.
