Massey Ferguson 80RT
The Massey Ferguson 80RT is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: 5 forward and 1 reverse. Operating weight: 305 lbs 138 kg.
Engine Power
8 hp
6.0 kW
Fuel & Capacities
8.84 gal
33.5 L
Transmission
5 forward and 1 reverse
Operating Weight
305 lbs
138 kg
Massey Ferguson Lawn Tractors Massey Ferguson 80RT Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 1994
Riding lawn mowerIngersoll built |
|---|---|
1991 - 1994 | |
Riding lawn mower | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
Riding lawn mower | |
Ingersoll built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Ingersoll |
Riding lawn mower | |
Massey Ferguson 80RT Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 8.84 gal
33.5 L |
Engine details ...  | |
Massey Ferguson 80RT Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 305 lbs
138 kg |
Front tire | 11x4.00-5 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
80RT published by Massey Ferguson | |
Lawn and Garden Tractors published in 1991, by Massey Ferguson |
Engine
| 1991 - 1994
Riding lawn mowerIngersoll built |
|---|---|
1991 - 1994 | |
Riding lawn mower | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
Riding lawn mower | |
Ingersoll built |
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 193707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Air cleaner | oiled foam |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.125 qts
1.1 L |
Transmission
| 1991 - 1994
Riding lawn mowerIngersoll built |
|---|---|
1991 - 1994 | |
Riding lawn mower | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
Riding lawn mower | |
Ingersoll built |
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
| 1991 - 1994
Riding lawn mowerIngersoll built |
|---|---|
1991 - 1994 | |
Riding lawn mower | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
Riding lawn mower | |
Ingersoll built |
Massey Ferguson 80RT Tires | |
|---|---|
Lawn/turf front | 11x4.00-5 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 81 inches
205 cm |
Height (steering wheel) | 36 inches
91 cm |
Weight | 305 lbs
138 kg |
Attachments
| 1991 - 1994
Riding lawn mowerIngersoll built |
|---|---|
1991 - 1994 | |
Riding lawn mower | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
Riding lawn mower | |
Ingersoll built |
30" Mower deck | |
|---|---|
Type | mid-mount Massey Ferguson |
1-blade | |
Cutting width | 30 inches
76 cm |
Overall width | 41.5 inches
105 cm |
Photos

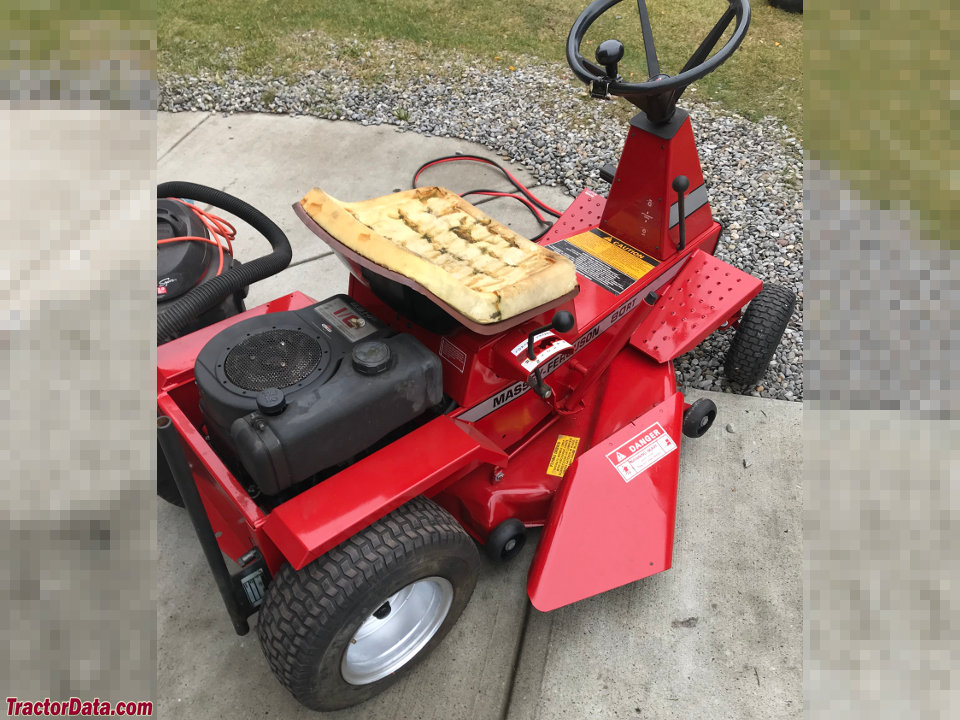

Massey Ferguson 80RT
Massey Ferguson 80RT
