massey harris gp

OverviewEngineTransmissionDimensionsTestsPhotos
Massey-Harris GP 15/22 tractor photo
1930 - 1936 Four-wheel Drive (4WD) tractor
1930 - 1936
Four-wheel Drive (4WD) tractor
1930 - 1936
Four-wheel Drive (4WD) tractor
1930 - 1936
Four-wheel Drive (4WD) tractor
Tractor Tests
NTTL 177: gasoline 3-speed 4WD
NTTL 191: distillate 3-speed 4WD
Nebraska Tractor Test 177

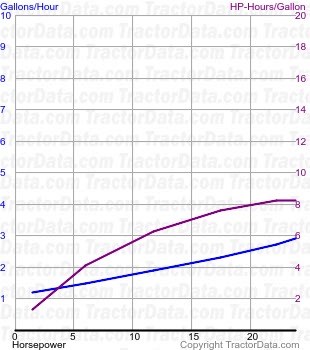

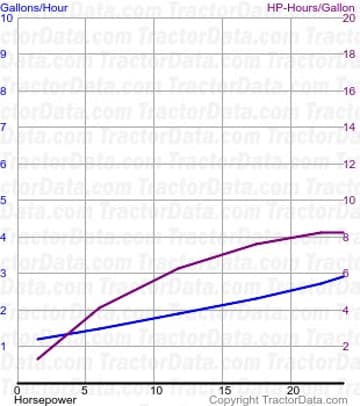

GP 15/22 fuel use from test 177
GP 15/22 fuel use from test 177
GP 15/22 fuel use from test 177
GP 15/22 fuel use from test 177
Nebraska Tractor Test 177
Gasoline 3-speed 4WD May 5 - 27, 1930 Link: Nebraska Tractor Test 177 file
Belt power (max)
24.84 hp 18.5 kW
Belt fuel use (max)
3.0 gal/hour 11.4 l/hour
Drawbar performance
Max power
19.91 hp 14.8 kW
Gear 1 used for power test.
Max pull
3,247 lbs 1472 kg
Gear 1 used for pull test.
Nebraska Tractor Test 191

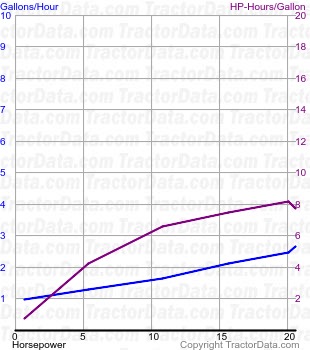

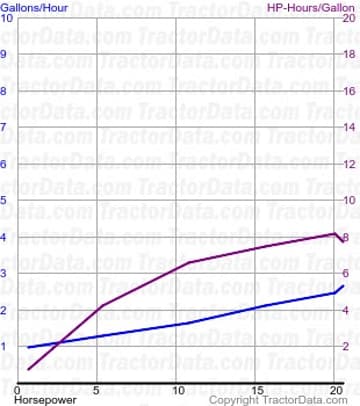

GP 15/22 fuel use from test 191
GP 15/22 fuel use from test 191
GP 15/22 fuel use from test 191
GP 15/22 fuel use from test 191
Nebraska Tractor Test 191
Distillate 3-speed 4WD May 22 - June 12, 1931 Link: Nebraska Tractor Test 191 file
Belt power (max)
22.50 hp 16.8 kW
Belt fuel use (max)
2.9 gal/hour 11.0 l/hour
Drawbar performance
Max power
16.79 hp 12.5 kW
Gear 2 used for power test.
Max pull
2,764 lbs 1253 kg
Gear 1 used for pull test.
