Mayrath Deluxe
The Mayrath Deluxe is a tractor produced by Mayrath Lawn Tractors. It is equipped with a 376 cc 23 ci engine. The listed engine power is Gasoline (listed): 8.25 hp / 6.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 525 lbs 238 kg.
Engine Power
Gasoline (listed): 8.25 hp / 6.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
525 lbs
238 kg
Overview
 | 1949 - 1952
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Mayrath |
Garden tractor | |
Built in Dodge City, Kansas, USA | |
Original price was $395 in 1949 | |
Mayrath Deluxe Engine | |
|---|---|
8.25HP Briggs & Stratton 376cc 1-cyl gasoline | |
Engine details ...  |
Mayrath Deluxe Transmission | |
|---|---|
3-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station with bench seat. |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 525 lbs
238 kg |
Full dimensions and tires ...  | |
Engine
Engine Detail — 376 cc / 23 ci Gasoline
Manufacturer | Briggs & Stratton 23 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 376 cc
23 ci |
Bore/Stroke | 3.00x3.25 inches
76 x 83 mm |
Power | 8.25 hp
6.2 kW |
Rated RPM | 3200 |
Starter type | manual rope recoil |
Transmission
Transmission — 3 forward and 1 reverse
Gears | 3 forward and 1 reverse |
Dimensions
Mayrath Deluxe Tires | |
|---|---|
Ag front | 5x16 |
Ag rear | 5x16 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 79 inches
200 cm |
Shipping weight | 525 lbs
238 kg |
Ground clearance | 10 inches
25 cm |
Front tread | 37 inches
93 cm |
Rear tread | 37 inches
93 cm |
Photos

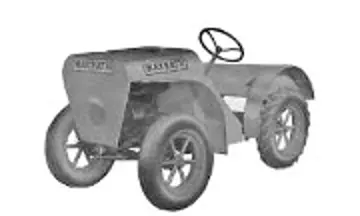

Mayrath Deluxe tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mayrath Lawn Tractors Mayrath Deluxe.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mayrath Lawn Tractors Mayrath Deluxe Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mayrath Lawn Tractors Mayrath Deluxe.
Converted Equivalents:
Horsepower (HP)8.3 hp
Kilowatts (kW)6.2 kW
Metric Horsepower (PS / CV)8.4 PS
