Mayrath Standard 5HP
The Mayrath Standard 5HP is a tractor produced by Mayrath Lawn Tractors. It is equipped with a 229 cc 14 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 3 forward and 1 reverse. Operating weight: 525 lbs 238 kg.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
525 lbs
238 kg
Overview
 | 1949 - 1952
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Mayrath |
Garden tractor | |
Built in Dodge City, Kansas, USA | |
Original price was $310 in 1950 | |
Mayrath Standard 5HP Engine | |
|---|---|
5HP Briggs & Stratton 229cc 1-cyl gasoline | |
Engine details ...  |
Mayrath Standard 5HP Transmission | |
|---|---|
3-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station with bench seat. |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 525 lbs
238 kg |
Full dimensions and tires ...  | |
Engine
Engine Detail — 229 cc / 14 ci Gasoline
Manufacturer | Briggs & Stratton 14 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 229 cc
14 ci |
Bore/Stroke | 2.625x2.625 inches
67 x 67 mm |
Power | 5 hp
3.7 kW |
Rated RPM | 3200 |
Starter type | manual rope recoil |
Transmission
Transmission — 3 forward and 1 reverse
Gears | 3 forward and 1 reverse |
Dimensions
Mayrath Standard 5HP Tires | |
|---|---|
Ag front | 5x16 |
Ag rear | 5x16 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 79 inches
200 cm |
Shipping weight | 525 lbs
238 kg |
Ground clearance | 10 inches
25 cm |
Front tread | 37 inches
93 cm |
Rear tread | 37 inches
93 cm |
Photos

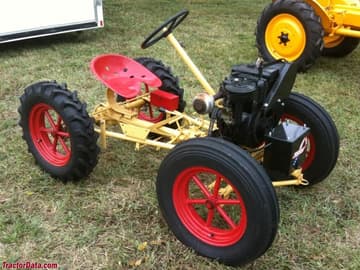

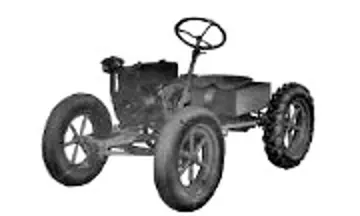

Mayrath Standard 5HP
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mayrath Lawn Tractors Mayrath Standard 5HP.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mayrath Lawn Tractors Mayrath Standard 5HP Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mayrath Lawn Tractors Mayrath Standard 5HP.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
