McCormick-Deering 10-20 TracTracTor

The McCormick-Deering 10-20 TracTracTor is a tractor produced by Mccormick Deering. It is equipped with a 283.7 ci 4.6 L engine. Transmission: 3 forward and 1 reverse. Drive type: crawler.

Drive & Traction
crawler
Fuel & Capacities
Kerosene
Transmission
3 forward and 1 reverse

Mccormick Deering McCormick-Deering 10-20 TracTracTor Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

McCormick-Deering 10-20 TracTracTor tractor photo
1928 - 1931 Agricultural Crawler tractor
1928 - 1931
Agricultural Crawler tractor
Production
Manufacturer
McCormick-Deering (a part of International Harvester)
Agricultural Crawler tractor
Built in Chicago, Illinois, USA
McCormick-Deering 10-20 TracTracTor Engine
International Harvester 4.6L 4-cyl kerosene
Engine details ...
McCormick-Deering 10-20 TracTracTor Transmission
3-speed gear
Transmission details ...
McCormick-Deering 10-20 TracTracTor Power
Belt (claimed)
20 hp 14.9 kW
Mechanical
Drive
crawler
Open operator Station
Dimensions & Tracks
Tracks
Full dimensions and tracks ...

Engine

Engine Detail — 283.7 ci / 4.6 L Kerosene

Manufacturer
International Harvester
Fuel Type
Kerosene
Configuration
4-cylinder, liquid-cooled
Displacement
283.7 ci 4.6 L
Bore/Stroke
4.25x5.00 inches 108 x 127 mm
Rated RPM
1000

Transmission

Transmission — 3 forward and 1 reverse gear

Type
gear
Gears
3 forward and 1 reverse

Dimensions

Dimensions

Photos

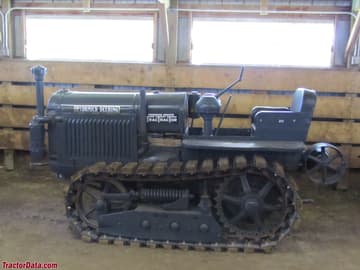

McCormick-Deering 10-20 TracTracTor

McCormick-Deering 10-20 TracTracTor

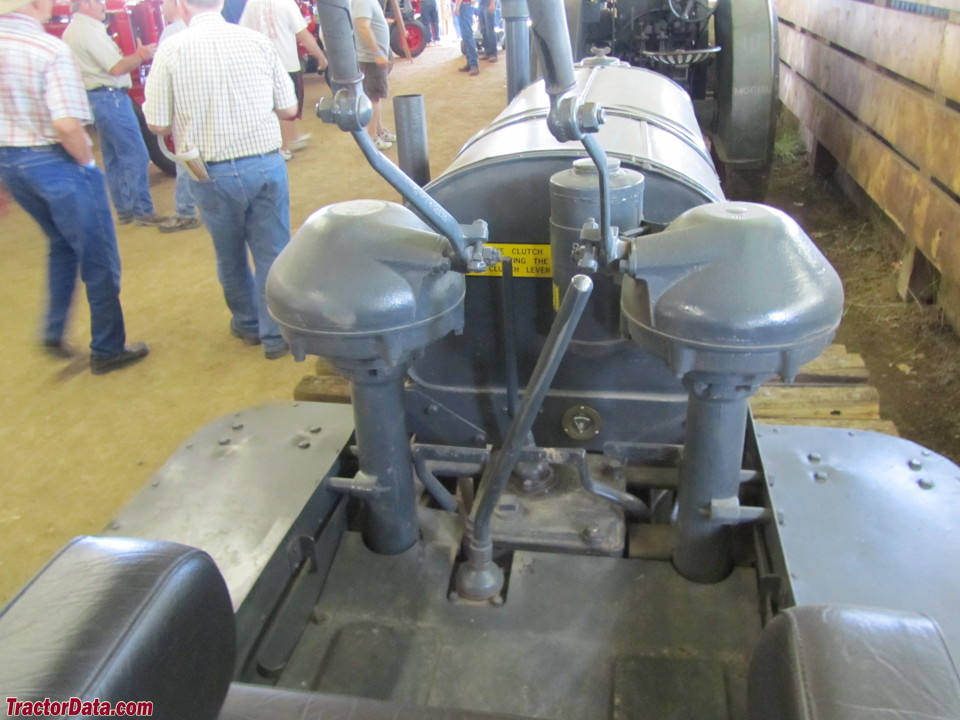

10-20 TracTracTor operator station and controls.

10-20 TracTracTor operator station and controls.
