McCormick-Deering A-554

The McCormick-Deering A-554 is a tractor produced by Mccormick Deering. It is equipped with a 264 ci 4.3 L engine. The listed engine power is Diesel (gross): 57 hp / 42.5 kW; Kerosene (listed): 52 hp / 38.8 kW. Transmission: 5 forward and 1 reverse.

Overview

	1962 - 1967 Standard-tread tractor

Production
Manufacturer	McCormick-Deering (a part of International Harvester)
Standard-tread tractor
Built in Geelong, Australia
Original price was AUP 1,620 in 1964

Variants
Farmall A554	row-crop
McCormick A554	standard

McCormick-Deering A-554 Transmission
5-speed gear
Transmission details ...

McCormick-Deering A-554 Power
Engine (gross)	57 hp 42.5 kW
Engine	52 hp 38.8 kW

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Full dimensions and tires ...

References
International Harvester Australia: Geelong Works by Sarah Tomac*
International Harvester Tractors & Equipment in Australia & New Zealand by Graeme Quick
Trucks, Tractors and Farm Equipment in Australia published in 1964, by International Harvester
*Publication contains known errors.

Engine

Engine options
International Harvester 4.3L 4-cyl diesel
International Harvester 4.3L 4-cyl kerosene

Engine Detail — 264 ci / 4.3 L Diesel

Manufacturer	International Harvester AD-264
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	264 ci 4.3 L
Bore/Stroke	4.00x5.25 inches 102 x 133 mm
Power (gross)	57 hp 42.5 kW
Firing order	1-3-4-2

Engine Detail — 264 ci / 4.3 L Kerosene

Manufacturer	International Harvester AC-264
Fuel Type	Kerosene
Configuration	4-cylinder, liquid-cooled
Displacement	264 ci 4.3 L
Bore/Stroke	4.00x5.25 inches 102 x 133 mm
Power	52 hp 38.8 kW
Firing order	1-3-4-2

Transmission

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse

Dimensions

McCormick-Deering A-554 Tires

Dimensions

Photos

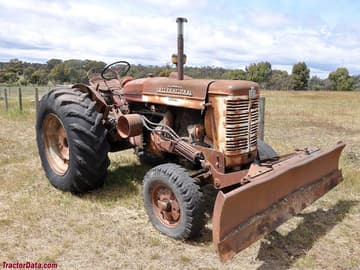

McCormick A554D.

McCormick A554D.

McCormick A554D.
