McCormick-Deering 22-36
The McCormick-Deering 22-36 is a tractor produced by Mccormick Deering. It is equipped with a 425.3 ci 7.0 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 6500 lbs 2948 kg.
Fuel & Capacities
19 gal
71.9 L
Transmission
3 forward and 1 reverse
Operating Weight
6500 lbs
2948 kg
Overview
 | 1929 - 1934
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | McCormick-Deering (a part of International Harvester) |
Standard-tread tractor | |
Built in Milwaukee, Wisconsin, USA | |
Total built | 57,464 |
McCormick-Deering 22-36 Engine | |
|---|---|
International Harvester 7.0L 4-cyl kerosene | |
Fuel tank | 19 gal
71.9 L |
Aux. fuel | 0.75 gal
2.8 L |
Engine details ...  | |
McCormick-Deering 22-36 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
McCormick-Deering 22-36 Power | |
|---|---|
Drawbar (tested) | 30.07 hp
22.4 kW |
Belt (tested) | 40.66 hp
30.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 6500 lbs
2948 kg |
Front tire | 34x6 |
Rear tire | 50x12 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 16.75 inches
42 cm |
Width | 9 inches
22 cm |
RPM | 593 |
References | |
|---|---|
 | |
McCormick-Deering Tractors - Modern Agricultural Power published in 1933, by International Harvester |
Engine
Engine Detail — 425.3 ci / 7.0 L Kerosene
Manufacturer | International Harvester |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled vertical, valve-in-head |
Displacement | 425.3 ci
7.0 L |
Bore/Stroke | 4.75x6.00 inches
121 x 152 mm |
Rated RPM | 1050 |
Oil capacity | 10.5 qts
9.9 L |
Coolant capacity | 46 qts
43.5 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
McCormick-Deering 22-36 Tires | |
|---|---|
Ag front | 34x6 (steel) |
Ag rear | 50x12 (steel) |
Ag front | 7.50-16 |
7.50-18 | |
Ag rear | 12.75-28 |
13.50-24 | |
Dimensions | |
|---|---|
Length | 137 inches
347 cm |
Width | 65 inches
165 cm |
Height | 70 inches
177 cm |
Weight | 6500 lbs
2948 kg |
Tests
Nebraska Tractor Test 156 | |
|---|---|
Kerosene
March 30 - April 9, 1929
Link: Nebraska Tractor Test 156 file | |
Belt power (max) | 40.66 hp
30.3 kW |
Belt fuel use (max) | 4.1 gal/hour
15.5 l/hour |
Drawbar performance | |
Max power | 30.07 hp
22.4 kW |
Gear 3 used for power test. | |
Photos

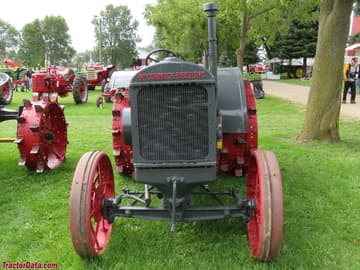

McCormick-Deering 22-36, right side
McCormick-Deering 22-36, right side
McCormick-Deering 22-36, right side
McCormick-Deering 22-36, right side
McCormick-Deering 22-36, rear view
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mccormick Deering McCormick-Deering 22-36.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
