McCormick-Deering O-6

The McCormick-Deering O-6 is a tractor produced by Mccormick Deering. It is equipped with a 247.7 ci 4.1 L engine. Transmission: 5 forward and 1 reverse. Operating weight: 5310 lbs 2408 kg.

Fuel & Capacities
21 gal 79.5 L
Transmission
5 forward and 1 reverse
Operating Weight
5310 lbs 2408 kg

Overview

McCormick-Deering O-6 tractor photo
1940 - 1953 Orchard/Vineyard tractor
Production
Manufacturer
McCormick-Deering
Orchard/Vineyard tractor
Built in Rock Island, Illinois, USA
Variants
W-6
standard
O-6
orchard
OS-6
orchard without full sheet metal
ODS-6
diesel OS-6
I-6
industrial
ID-6
diesel industrial
McCormick-Deering O-6 Engine
International Harvester 4.1L 4-cyl gasoline
Fuel tank
21 gal 79.5 L
Aux. fuel
0.875 gal 3.3 L
Engine details ...
McCormick-Deering O-6 Transmission
5-speed gear
Transmission details ...
McCormick-Deering O-6 Power
Drawbar (claimed)
33.5 hp 25.0 kW
Belt (claimed)
38.5 hp 28.7 kW
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTO Type
540
Dimensions & Tires
Wheelbase
76.25 inches 193 cm
Weight
5310 lbs 2408 kg
Front tire
6.00-16
Rear tire
13-26
Full dimensions and tires ...
Belt Pulley
Diameter
11 inches 27 cm
Width
7.5 inches 19 cm
RPM
899
Speed
2588 ft/min 788.82 meters/min
References
O-6 references literature
General Line Catalog published in 1949, by International Harvester

Engine

Engine Detail — 247.7 ci / 4.1 L Gasoline

Manufacturer
International Harvester
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
247.7 ci 4.1 L
Bore/Stroke
3.875x5.25 inches 98 x 133 mm
Compression
5.65:1 (high compression gasoline)
4.75:1 (distillate-gasoline)
4.5:1 (kerosene)
Rated RPM
1450

Transmission

Transmission — 5 forward and 1 reverse gear

Type
gear
Gears
5 forward and 1 reverse

Dimensions

McCormick-Deering O-6 Tires
Ag front
6.00-16
Ag rear
13-26
Dimensions
Wheelbase
76.25 inches 193 cm
Length
133.25 inches 338 cm
Width
65 inches 165 cm
Height
63.5 inches 161 cm
Weight
5310 lbs 2408 kg
Clearance (front axle)
15.25 inches 38 cm
Front tread
46.75 inches 118 cm
Rear tread
45 inches 114 cm

Photos

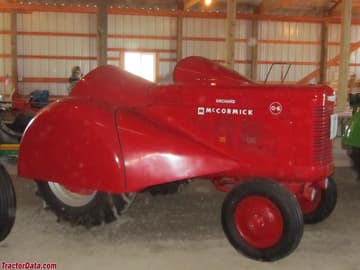

McCormick-Deering O-6, right side.

McCormick-Deering O-6, right side.

McCormick-Deering O-6, left side.

McCormick-Deering O-6, left side.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mccormick Deering McCormick-Deering O-6.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
