McCormick-Deering OS-6
The McCormick-Deering OS-6 is a tractor produced by Mccormick Deering. It is equipped with a 247.7 ci 4.1 L engine. Transmission: 5 forward and 1 reverse.
Fuel & Capacities
Gasoline
Transmission
5 forward and 1 reverse
Mccormick Deering McCormick-Deering OS-6 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1944 - 1953
Orchard/Vineyard tractor |
|---|---|
1944 - 1953 | |
Orchard/Vineyard tractor | |
Production | |
|---|---|
Manufacturer | McCormick-Deering |
Orchard/Vineyard tractor | |
Built in Rock Island, Illinois, USA | |
Variants | |
|---|---|
W-6 | standard |
O-6 | orchard |
OS-6 | orchard without full sheet metal |
ODS-6 | diesel OS-6 |
I-6 | industrial |
ID-6 | diesel industrial |
McCormick-Deering OS-6 Engine | |
|---|---|
International Harvester 4.1L 4-cyl gasoline | |
Engine details ...  |
McCormick-Deering OS-6 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
McCormick-Deering OS-6 Power |
|---|
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
References | |
|---|---|
 | |
General Line Catalog published in 1949, by International Harvester |
Engine
Engine Detail — 247.7 ci / 4.1 L Gasoline
Manufacturer | International Harvester |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 247.7 ci
4.1 L |
Bore/Stroke | 3.875x5.25 inches
98 x 133 mm |
Compression | 5.65:1 (high compression gasoline) |
4.75:1 (distillate-gasoline) | |
4.5:1 (kerosene) |
Transmission
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Dimensions
McCormick-Deering OS-6 Tires |
|---|
Dimensions |
|---|
Photos

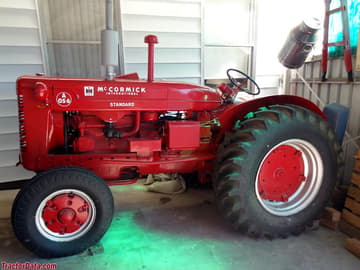

Australian-built AOS-6, left side.
McCormick OS-6, right side.
McCormick OS-6 operator station and controls.
McCormick OS-6, left side.
