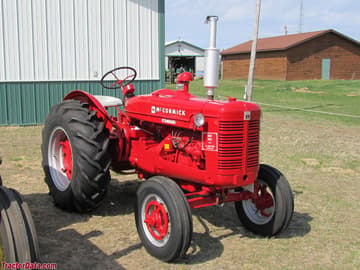

McCormick-Deering Super W-4
The McCormick-Deering Super W-4 is a tractor produced by Mccormick Deering. It is equipped with a 164 ci 2.7 L engine. The rated power output is 33.85 hp 25.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 3875 lbs 1757 kg.
Engine Power
33.85 hp
25.2 kW
Fuel & Capacities
17 gal
64.3 L
Transmission
5 forward and 1 reverse
Operating Weight
3875 lbs
1757 kg
Mccormick Deering McCormick-Deering Super W-4 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

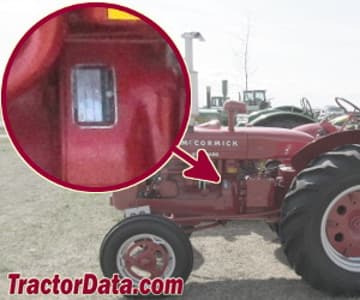

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1953 - 1954
Standard-tread tractor |
|---|---|
1953 - 1954 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | McCormick-Deering (a part of International Harvester) |
Standard-tread tractor | |
Total built | 28,784 |
Original price | $2,100 (1954) |
McCormick-Deering Super W-4 Engine | |
|---|---|
International Harvester 2.7L 4-cyl gasoline | |
Fuel tank | 17 gal
64.3 L |
Engine details ...  | |
McCormick-Deering Super W-4 Transmission | |
|---|---|
5-speed sliding gear | |
Transmission details ...  |
McCormick-Deering Super W-4 Power | |
|---|---|
Drawbar (claimed) | 23 hp
17.2 kW |
PTO (claimed) | 30 hp
22.4 kW |
Drawbar (tested) | 29.31 hp
21.9 kW |
Belt (tested) | 33.85 hp
25.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Mechanical disc brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 89.25 inches
226 cm |
Weight | 3875 lbs
1757 kg |
Front tire | 5.50-16 |
Rear tire | 11-38 |
Full dimensions and tires ...  | |
Links | |
|---|---|
Farmall-H.com: detailed information on the H |
Belt Pulley | |
|---|---|
Diameter | 9.75 inches
24 cm |
Width | 7.5 inches
19 cm |
RPM | 2601 |
Speed | 1019 ft/min
310.59 meters/min |
Engine
Engine Detail — 164 ci / 2.7 L Gasoline
Manufacturer | International Harvester |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 164 ci
2.7 L |
Bore/Stroke | 3.50x4.25 inches
89 x 108 mm |
Air cleaner | oil bath |
Compression | 6.1:1 |
Rated RPM | 1650 |
Firing order | 1-3-4-2 |
Starter volts | 6 |
Coolant capacity | 16.5 qts
15.6 L |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.020 inches
0.508 mm |
Intake valve clearance | 0.017 inches
0.432 mm |
Exhaust valve clearance | 0.017 inches
0.432 mm |
Transmission
Transmission — 5 forward and 1 reverse sliding gear
Type | sliding gear |
Gears | 5 forward and 1 reverse |
Clutch | dry plate |
 | |
Dimensions
McCormick-Deering Super W-4 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 11-38 |
Dimensions | |
|---|---|
Wheelbase | 89.25 inches
226 cm |
Length | 114 inches
289 cm |
Width | 67 inches
170 cm |
Height | 81 inches
205 cm |
Weight | 3875 lbs
1757 kg |
Tests
Nebraska Tractor Test 491 | |
|---|---|
Gasoline 5-speed 2WD
April 27 - May 13, 1953
Link: Nebraska Tractor Test 491 file | |
Belt power (max) | 33.85 hp
25.2 kW |
Belt fuel use (max) | 3.0 gal/hour
11.4 l/hour |
Drawbar performance | |
Max power | 29.31 hp
21.9 kW |
Gear 3 used for power test. | |
Max pull | 4,501 lbs
2041 kg |
Gear 1 used for pull test. | |
Photos

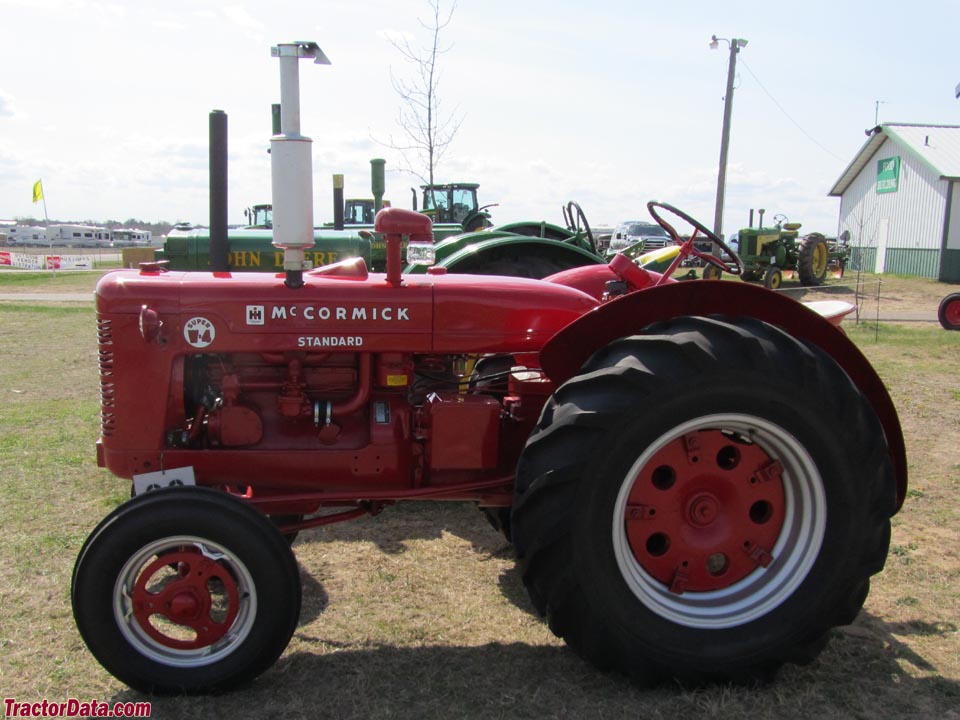

McCormick-Deering Super W-4
