McCormick-Deering TD-35
The McCormick-Deering TD-35 is a tractor produced by Mccormick Deering. It is equipped with a 413.5 ci 6.8 L engine. Transmission: 5 forward and 1 reverse. Drive type: crawler. Operating weight: 10550 lbs 4785 kg.
Drive & Traction
crawler
Fuel & Capacities
40 gal
151.4 L
Transmission
5 forward and 1 reverse
Operating Weight
11245 lbs
5100 kg
Overview
 | 1937 - 1939
Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | McCormick-Deering (a part of International Harvester) |
Agricultural Crawler tractor | |
Built in Melrose Park, Illinois, USA | |
Variants | |
|---|---|
T-35 | gasoline |
TD-35 | diesel |
McCormick-Deering TD-35 Engine | |
|---|---|
International Harvester 6.8L 4-cyl diesel | |
Fuel tank | 40 gal
151.4 L |
Aux. fuel | 1.25 gal
4.7 L |
Engine details ...  | |
McCormick-Deering TD-35 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
McCormick-Deering TD-35 Power | |
|---|---|
Drawbar (claimed) | 27 hp
20.1 kW |
Belt (claimed) | 37 hp
27.6 kW |
Drawbar (tested) | 37.09 hp
27.7 kW |
Belt (tested) | 42.2 hp
31.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station. | |
Dimensions & Tracks | |
|---|---|
Weight | 10550 to 11245 pounds |
13-inch tracks | |
Full dimensions and tracks ...  | |
Belt Pulley | |
|---|---|
Diameter | 16.75 inches
42 cm |
Width | 9 inches
22 cm |
RPM | 591 |
References | |
|---|---|
 | |
International Tractors - The Line That Offers You A Choice published in 1933, by International Harvester |
Engine
Engine Detail — 413.5 ci / 6.8 L Diesel
Manufacturer | International Harvester |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled vertical I-head |
Displacement | 413.5 ci
6.8 L |
Bore/Stroke | 4.50x6.50 inches
114 x 165 mm |
Rated RPM | 1100 |
Coolant capacity | 52 qts
49.2 L |
Transmission
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Clutch | dry dsic |
 | |
Dimensions
McCormick-Deering TD-35 Tracks | |
|---|---|
Width | 13 inches
33 cm |
Dimensions | |
|---|---|
Length | 132.5 inches
336 cm |
Width | 59.5 inches
151 cm |
Weight | 10550 lbs
4785 kg |
Operating weight | 11245 lbs
5100 kg |
Tests
Nebraska Tractor Test 277 | |
|---|---|
Diesel 5-speed crawler
April 5 - 27, 1937
Link: Nebraska Tractor Test 277 file | |
Belt power (max) | 42.2 hp
31.5 kW |
Drawbar performance | |
Max power | 37.09 hp
27.7 kW |
Gear 1 used for power test. | |
Max pull | 8243 lbs
3739 kg |
Gear 1 used for pull test. | |
Photos

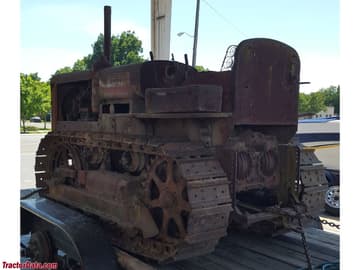

McCormick-Deering TD-35
McCormick-Deering TD-35
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mccormick Deering McCormick-Deering TD-35.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
