mccormick deering w 12

OverviewEngineTransmissionDimensionsTestsPhotos
McCormick-Deering W-12 tractor photo
1934 - 1938 Standard-tread tractor
1934 - 1938
Standard-tread tractor
1934 - 1938
Standard-tread tractor
1934 - 1938
Standard-tread tractor
Tractor Tests
NTTL 229: kerosene 3-speed 2WD
NTTL 231: gasoline 3-speed 2WD
Nebraska Tractor Test 229

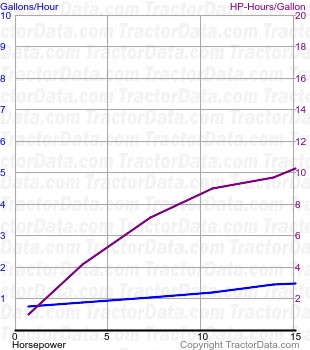

W-12 fuel use from test 229
W-12 fuel use from test 229
W-12 fuel use from test 229
W-12 fuel use from test 229
Nebraska Tractor Test 229
Kerosene 3-speed 2WD October 23 - November 9, 1934 Link: Nebraska Tractor Test 229 file
Belt power (max)
15.28 hp 11.4 kW
Belt fuel use (max)
1.5 gal/hour 5.7 l/hour
Drawbar performance
Max power
12.56 hp 9.4 kW
Gear 1 used for power test.
Max pull
1,996 lbs 905 kg
Gear 1 used for pull test.
Nebraska Tractor Test 231

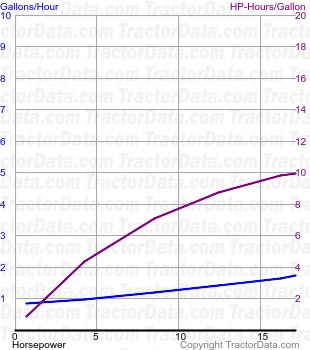

W-12 fuel use from test 231
W-12 fuel use from test 231
W-12 fuel use from test 231
W-12 fuel use from test 231
Nebraska Tractor Test 231
Gasoline 3-speed 2WD November 13 - 16, 1934 Link: Nebraska Tractor Test 231 file
Belt power (max)
17.65 hp 13.2 kW
Belt fuel use (max)
1.8 gal/hour 6.8 l/hour
Drawbar performance
Max power
13.52 hp 10.1 kW
Gear 1 used for power test.
Max pull
2,140 lbs 970 kg
Gear 1 used for pull test.
