McCormick-Deering W-14

The McCormick-Deering W-14 is a tractor produced by Mccormick Deering. It is equipped with a 113.1 ci 1.9 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 3,300 lbs 1496 kg.

Overview

	1938 - 1939 Standard-tread tractor
1938 - 1939
Standard-tread tractor

Production
Manufacturer	McCormick-Deering (a part of International Harvester)
Standard-tread tractor
Built in Chicago, Illinois, USA
Total built	1,163

Variants
F-14	Farmall row-crop version
O-14	orchard
I-14	industrial

McCormick-Deering W-14 Engine
International Harvester 1.9L 4-cyl gasoline
Fuel tank	11 gal 41.6 L
Engine details ...

McCormick-Deering W-14 Transmission
3-speed gear
Transmission details ...

McCormick-Deering W-14 Power
Drawbar (claimed)	14.8 hp 11.0 kW
Belt (claimed)	17.4 hp 13.0 kW
Plows	1

Mechanical
Two-wheel drive
Open operator station.

Power Take-off (PTO)
Rear PTO Type	550

Dimensions & Tires
Wheelbase	60 inches 152 cm
Weight	3,300 lbs 1496 kg
Front tire	5.50x16
Rear tire	9.00x24
Full dimensions and tires ...

Belt Pulley
Diameter	12.4 inches 31 cm
Width	6.25 inches 15 cm
RPM	794

Engine

Engine Detail — 113.1 ci / 1.9 L Gasoline

Manufacturer	International Harvester
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	113.1 ci 1.9 L
Bore/Stroke	3.00x4.00 inches 76 x 102 mm
Fuel system	IH A-10 carburetor
Rated RPM	1650
Starter type	hand-crank
Coolant capacity	12 qts 11.4 L

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse

Dimensions

McCormick-Deering W-14 Tires
Ag front	5.50x16
Ag rear	9.00x24
	11.25x24

Dimensions
Wheelbase	60 inches 152 cm
W-14 Length	103 inches 261 cm
O-14 Length	114 inches 289 cm
W-14 Width	50 inches 127 cm
O-14 Width	62 inches 157 cm
O-14 Height (hood)	48 inches 121 cm
Weight	3,300 lbs 1496 kg
Front tread	39.375 inches 100 cm
Rear tread	42 inches 106 cm

Photos

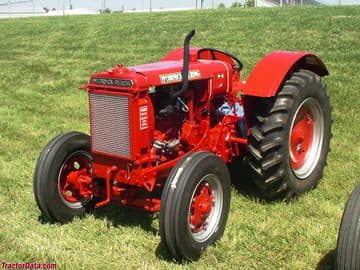

McCormick-Deering W-14

McCormick-Deering O-14 orchard tractor
