McCormick-Deering W-30
The McCormick-Deering W-30 is a tractor produced by Mccormick Deering. It is equipped with a 283.7 ci 4.6 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 4850 lbs 2199 kg.
Fuel & Capacities
22 gal
83.3 L
Transmission
3 forward and 1 reverse
Operating Weight
4850 lbs
2199 kg
Overview
 | 1932 - 1940
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | McCormick-Deering (a part of International Harvester) |
Standard-tread tractor | |
Built in Milwaukee, Wisconsin, USA | |
Total built | 32,541 |
McCormick-Deering W-30 Engine | |
|---|---|
International Harvester 4.6L 4-cyl distillate | |
Fuel tank | 22 gal
83.3 L |
Aux. fuel | 1.25 gal
4.7 L |
Engine details ...  | |
McCormick-Deering W-30 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
McCormick-Deering W-30 Power | |
|---|---|
Drawbar (claimed) | 18 hp
13.4 kW |
Belt (claimed) | 25 hp
18.6 kW |
Plows | 3 |
Drawbar (tested) | 24.29 hp
18.1 kW |
Belt (tested) | 33.26 hp
24.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical drum brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.5 inches
184 cm |
Weight | 4850 lbs
2199 kg |
Front tire | 30x6 |
Rear tire | 36x12 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
International Tractors - The Line That Offers You A Choice published in 1933, by International Harvester | |
McCormick-Deering Tractors - Modern Agricultural Power published in 1933, by International Harvester |
Engine
Engine Detail — 283.7 ci / 4.6 L
Manufacturer | International Harvester |
Configuration | 4-cylinder, liquid-cooled vertical I-head |
distillate | |
Displacement | 283.7 ci
4.6 L |
Bore/Stroke | 4.25x5.00 inches
108 x 127 mm |
Fuel system | Zenith carburetor |
Air cleaner | oil bath |
Rated RPM | 1150 |
Coolant capacity | 44 qts
41.6 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
McCormick-Deering W-30 Tires | |
|---|---|
Ag front | 30x6 (steel) |
Ag rear | 36x12 (steel) |
Ag front | 26x6 (steel) |
6.00-16 | |
6.50-16 | |
7.50-16 | |
6.00-18 | |
7.50-18 | |
6.00-20 | |
6.50-20 | |
7.50-20 | |
Ag rear | 42x12 (steel) |
11.25-24 | |
12.75-24 | |
13.50-24 | |
11.25-28 | |
12.75-28 | |
Dimensions | |
|---|---|
Wheelbase | 72.5 inches
184 cm |
Length | 121.75 inches
309 cm |
Width | 66.25 inches
168 cm |
Height (steering wheel) | 62.75 inches
159 cm |
Weight | 4850 lbs
2199 kg |
Front tread | 45.5 inches
115 cm |
Rear tread | 53.25 inches
135 cm |
Tests
Nebraska Tractor Test 210 | |
|---|---|
Kerosene 3-speed 2WD
July 26 - August 10, 1932
Link: Nebraska Tractor Test 210 file | |
Belt power (max) | 33.26 hp
24.8 kW |
Belt fuel use (max) | 3.3 gal/hour
12.5 l/hour |
Drawbar performance | |
Max power | 24.29 hp
18.1 kW |
Gear 1 used for power test. | |
Max pull | 3,118 lbs
1414 kg |
Gear 1 used for pull test. | |
Photos

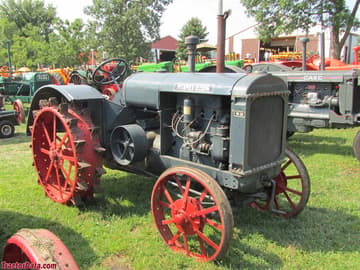

Gray McCormick-Deering W-30 with steel wheels.
Gray McCormick-Deering W-30 with steel wheels.
Gray McCormick-Deering W-30 with steel wheels.
Red McCormick-Deering W-30 with steel wheels.
Red McCormick-Deering W-30 with rubber tires.
