mccormick deering w 40

McCormick-Deering W-40 tractor photo
1935 - 1940 Standard-tread tractor
1935 - 1940
Standard-tread tractor
1935 - 1940
Standard-tread tractor
1935 - 1940
Standard-tread tractor
Tractor Tests
NTTL 268: distillate 1600rpm 3-speed 2WD
NTTL 269: distillate 1750rpm 3-speed 2WD
Nebraska Tractor Test 268

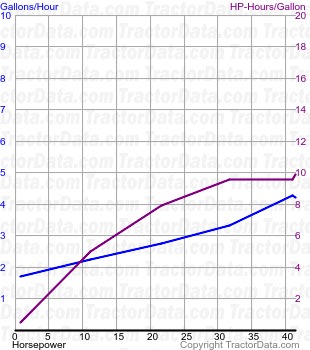

W-40 fuel use from test 268
W-40 fuel use from test 268
W-40 fuel use from test 268
W-40 fuel use from test 268
Nebraska Tractor Test 268
Distillate 1600rpm 3-speed 2WD August 25 - September 3, 1936 Link: Nebraska Tractor Test 268 file
Belt power (max)
45.69 hp 34.1 kW
Belt fuel use (max)
5.4 gal/hour 20.4 l/hour
Drawbar performance
Max power
31.79 hp 23.7 kW
Gear 2 used for power test.
Max pull
4,399 lbs 1995 kg
Gear 1 used for pull test.
Nebraska Tractor Test 269

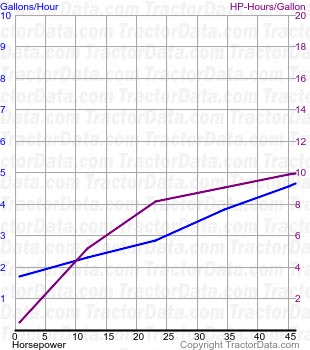

W-40 fuel use from test 269
W-40 fuel use from test 269
W-40 fuel use from test 269
W-40 fuel use from test 269
Nebraska Tractor Test 269
Distillate 1750rpm 3-speed 2WD September 3 - 15, 1936 Link: Nebraska Tractor Test 269 file
Belt power (max)
49.76 hp 37.1 kW
Belt fuel use (max)
5.6 gal/hour 21.2 l/hour
Drawbar performance
Max power
35.22 hp 26.3 kW
Gear 2 used for power test.
Max pull
4,982 lbs 2259 kg
Gear 1 used for pull test.
