McCormick Intl CT28

The McCormick Intl CT28 is a tractor produced by Mccormick Intl. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (gross): 28 hp / 20.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 450 lbs 204 kg.

Engine Power

Diesel (gross): 28 hp / 20.9 kW

Fuel & Capacities

8.5 gal 32.2 L

Transmission

infinite forward and reverse (3-range)

Operating Weight

450 lbs 204 kg

Overview

	2007 - 2010 CT SeriesCompact Utility tractor CT Series Compact Utility tractor

Production
Manufacturer	McCormick Intl (a part of Argo)
Compact Utility tractor
Original price was $24,300 in 2008

Variants
CT28	gear
CT28HST	hydrostatic

McCormick Intl CT28 Engine
Mitsubishi 1.5L 4-cyl diesel
Fuel tank	8.5 gal 32.2 L
Engine details ...

McCormick Intl CT28 Power
Engine (gross)	28 hp 20.9 kW
Gear PTO (claimed)	23 hp 17.2 kW
Hydro PTO (claimed)	22 hp 16.4 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Valves	2
Pump flow	8 gpm 30.3 lpm
Steering flow	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2620 lbs 1188 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Mid PTO Type	2100

Dimensions & Tires
Wheelbase	65 inches 165 cm
Weight	2645 lbs 1199 kg
Front tire	7x14
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Charging volts	12
Battery volts	12

References

CT Series published in 2006, by McCormick
CT Series published in 2008, by McCormick
CT Series published in 2009, by McCormick

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Mitsubishi
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.07x3.09 inches 78 x 78 mm
Power (gross)	28 hp 20.9 kW
Air cleaner	dual dry element
Pre-heating	glow plugs
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed synchro shuttle
hydrostatic

Transmission — 12 forward and reverse synchro shuttle

Type	synchro shuttle
Gears	12 forward and reverse

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

McCormick Intl CT28 Tires
Ag front	7x14
Ag rear	11.2-24
Industrial front	25x8.5-14
Industrial rear	43x16-20

Dimensions
Wheelbase	65 inches 165 cm
Length	118 inches 299 cm
Width	66.5 inches 168 cm
Height (ROPS)	89.8 inches 228 cm
Weight	2645 lbs 1199 kg
Ground clearance	13 inches 33 cm
Front tread	44.8 inches 113 cm
Rear tread	50.5 inches 128 cm

Attachments

Attachment overview
66" mid-mount mower deck
Front-end loader
Backhoe

66" Mower deck
Type	mid-mount McCormick MS66
Cutting width	66 inches 167 cm
Weight	450 lbs 204 kg
Cut height	1 to 4 inch 2 to 10 cm

McCormick Intl MH76 Backhoe
Backhoe type	McCormick Intl MH76 Backhoe
Bucket width	9 inches 22 cm
	13 inches 33 cm
	16 inches 40 cm
	20 inches 50 cm
	24 inches 60 cm
Digging depth	96 inches 243 cm
2-Foot flat digging depth	90 inches 228 cm
Reach from pivot	114 inches 289 cm
Loading height	70 inches 177 cm
Bucket force	2,840 lbs 1288 kg
Dipperstick force	2,005 lbs 909 kg

Photos

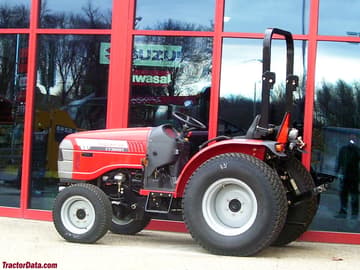

McCormick Intl CT28

Recommended Implements & Sizing Guide

Engineering recommendations for Mccormick Intl CT28 based on its 28 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mccormick Intl CT28.

Estimated Continuous Field Runtime: 5.8 hrs

Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (8.5 gal / 32.2 L).

Estimated 75% Load Fuel Burn~1.5 gal/hr (5.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
