McCormick Intl CX110
The McCormick Intl CX110 is a tractor produced by Mccormick Intl. It is equipped with a 268 ci 4.4 L engine. The rated power output is 102 hp 76.1 kW. Transmission: synchronized shuttle. Operating weight: 9,193.3 lbs 4170 kg.
Engine Power
102 hp
76.1 kW
Fuel & Capacities
40.9 gal
154.8 L
Transmission
synchronized shuttle
Operating Weight
9,193.3 lbs
4170 kg
Mccormick Intl CX110 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2008 - 2011
CX SeriesUtility tractor |
|---|---|
2008 - 2011 | |
CX Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | McCormick Intl |
Utility tractor | |
Built in Italy | |
McCormick Intl CX110 Engine | |
|---|---|
Perkins 4.4L 4-cyl diesel | |
Fuel tank | 40.9 gal
154.8 L |
Engine details ...  | |
McCormick Intl CX110 Power | |
|---|---|
Engine | 102 hp
76.1 kW |
PTO (claimed) | 85 hp
63.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Wet disc brakes | |
Cab standard. Optional sir-conditioning. | |
Hydraulics | |
|---|---|
Valves | 2 |
Pump flow | 15.8 gpm
59.8 lpm |
Total flow | 23.7 gpm
89.7 lpm |
Steering flow | 7.9 gpm
29.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7,054 lbs
3199 kg |
9,810 lbs (optional)
4449 kg | |
Front Hitch | II (optional) |
Front lift | 6,613.9 lbs
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
540/750 (optional) | |
Front PTO | independent (optional) |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 96.5 inches
245 cm |
Weight | 9193.3 to 9347.6 pounds |
Front tire | 320/85R24 |
Rear tire | 420/85R34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 268 ci / 4.4 L Diesel
Manufacturer | Perkins 1104D-44TA |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 268 ci
4.4 L |
Bore/Stroke | 4.134x5.00 inches
105 x 127 mm |
Emissions | Tier 3 |
Power | 102 hp
76.1 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
24-speed power shuttle | |
36-speed power shuttle | |
8-speed 16 |
Transmission — Xtrashift
Transmission | Xtrashift |
Type | power shuttle |
Gears | 24 forward and reverse |
Three power shift speeds in each of four gears. High and low ranges. | |
Transmission — Xtrashift
Transmission | Xtrashift |
Type | power shuttle |
Gears | 36 forward and reverse |
Three power shift speeds in each of four gears. High, low, and creeper ranges. | |
Transmission — synchronized shuttle
Transmission | synchronized shuttle |
Type | 16 |
Gears | 8 forward |
Dimensions
McCormick Intl CX110 Tires | |
|---|---|
Ag front | 320/85R24 |
Ag rear | 420/85R34 |
Dimensions | |
|---|---|
Wheelbase | 96.5 inches
245 cm |
Length | 170.2 inches
432 cm |
Width | 92.3 inches
234 cm |
77.3 inches (narrow mudguards)
196 cm | |
Height (cab) | 107.8 inches
273 cm |
100 inches (low-profile cab)
254 cm | |
Weight | 9,193.3 lbs
4170 kg |
9,347.6 lbs (low-profile cab)
4240 kg | |
Ground clearance | 16.5 inches
41 cm |
Photos

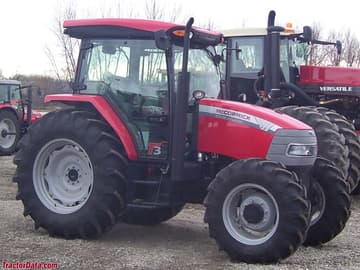

McCormick Intl CX110
Mccormick Intl CX110 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mccormick Intl CX110.
Converted Equivalents:
Horsepower (HP)102 hp
Kilowatts (kW)76.1 kW
Metric Horsepower (PS / CV)103.4 PS
