McCormick Intl F95

The McCormick Intl F95 is a tractor produced by Mccormick Intl. It is equipped with a 268 ci 4.4 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 30 forward and reverse. Operating weight: 5766 to 6714 pounds.

Engine Power

Diesel (listed): 95 hp / 70.8 kW

Fuel & Capacities

19.3 gal*With optional 25L tank 73.1 L

Transmission

30 forward and reverse

Operating Weight

5766 to 6714 pounds

Overview

	2004 - 2008 F SeriesOrchard/Vineyard tractor F Series Orchard/Vineyard tractor

Production
Manufacturer	McCormick Intl (a part of Argo)
Orchard/Vineyard tractor

Variants
F95	standard narrow
F95XL	wide deluxe

McCormick Intl F95 Engine
Perkins 4.4L 4-cyl diesel
F/GE Fuel tank	12.7 gal 48.1 L
F/GE Fuel tank	19.3 gal*With optional 25L tank 73.1 L
XL Fuel tank	17.2 gal 65.1 L
XL Fuel tank	23.8 gal*With optional 25L tank 90.1 L
Engine details ...

McCormick Intl F95 Power
Engine	95 hp 70.8 kW
PTO (claimed)	85 hp 63.4 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post mid-mount folding ROPS. Cab optional.

Hydraulics
Type	open center
F/GE Valves	2
XL Valves	3
Pump flow	13.8 gpm 52.2 lpm
Total flow	21.7 gpm 82.1 lpm
Steering flow	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type	II
Rear lift	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
	wet disc *With power shuttle transmissions
Rear PTO Type	540/750
	540/1000

Dimensions & Tires
Wheelbase	85.6 inches (2WD) 217 cm
	84 inches (4WD) 213 cm
Weight	5766 to 6714 pounds
Front tire	7.50-16
Rear tire	14.9R28
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	85

References

F Series published in 2006, by McCormick

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Perkins 1104C-44T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	268 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	95 hp 70.8 kW
Fuel system	direct injection
Rated RPM	2200
Torque	268.5 lb-ft 364.1 Nm
Starter	electric
Starter volts	12

McCormick Intl F95 Engine

Transmission

Transmission options
15-speed mechanical shuttle
15-speed power shuttle
30-speed two-speed power shift

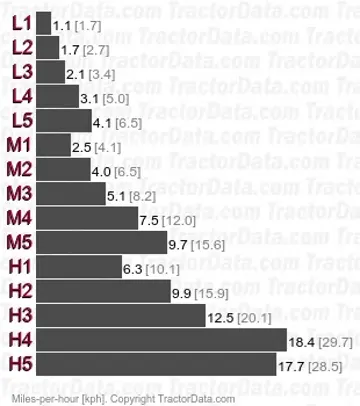

Transmission — 15 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	15 forward and reverse
Clutch	304mm mechanical dry disc
Five gears in three ranges with mechanical shuttle. Also available with creeper range, providing 20 speeds.
With 16.9R24 rear tires. Reverse speeds are 1% faster than forward.

Transmission — 15 forward and reverse power shuttle

Type	power shuttle
Gears	15 forward and reverse
Clutch	wet disc
Five gears in three ranges with power shuttle. Also available with creeper range, providing 20 speeds.

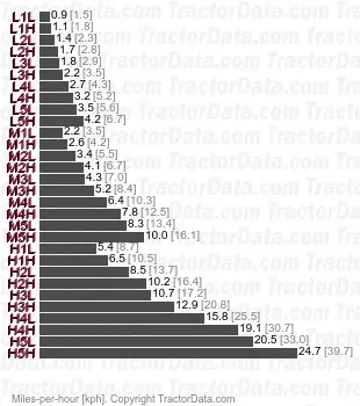

Transmission — 30 forward and reverse two-speed power shift

Type	two-speed power shift
Gears	30 forward and reverse
Clutch	wet disc
Five gears in three ranges with power shuttle and two-speed power shift in each gear. Also available with creeper range, providing 40 speeds.
With 14.9R28 rear tires. Reverse speeds are 3% slower than forward.

Dimensions

McCormick Intl F95 Tires
Ag front	7.50-16 (2WD)
	280/70R20 (4WD)
Ag rear	14.9R28

Dimensions
Wheelbase	85.6 inches (2WD) 217 cm
	84 inches (4WD) 213 cm
Length	146 inches 370 cm
Width	49 inches 124 cm
Height (ROPS)	90 inches 228 cm
Height (Folded ROPS)	55 inches 139 cm
Height (cab)	87 inches 220 cm
Ground clearance	13.8 inches 35 cm

McCormick Intl F95 Weight
2WD ROPS	5766 lbs 2615 kg
4WD ROPS	6273 lbs 2845 kg
2WD Cab	6206 lbs 2815 kg
4WD Cab	6714 lbs 3045 kg

Photos

McCormick F95XL orchard tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Mccormick Intl F95 based on its 95 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mccormick Intl F95.

Estimated Continuous Field Runtime: 3.9 hrs

Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (19.3 gal / 73.1 L).

Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
