McCormick Intl MC135 Power6

The McCormick Intl MC135 Power6 is a tractor produced by Mccormick Intl. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 132 hp 98.4 kW. Transmission: 32 forward and 24 reverse. Operating weight: 11124 to 12742 pounds.

Overview

	2003 - 2007 MC SeriesUtility tractor
2003 - 2007
MC Series
Utility tractor

Production
Manufacturer	McCormick Intl
Utility tractor
Built in Doncaster, England

McCormick Intl MC135 Engine
Perkins 6.0L 6-cyl diesel
Engine details ...

McCormick Intl MC135 Power
Engine	132 hp 98.4 kW
PTO (claimed)	113 hp 84.3 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic wet clutch
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional.

Capacity
Fuel	70 gal 264.9 L
Hydraulic system	19.8 gal 74.9 L

Hydraulics
Type	pressure flow compensated (PFC)
Capacity	19.8 gal 74.9 L
Valves	2 to 4
Pump flow	28.8 gpm 109.0 lpm
SCV flow	25.1 gpm 95.0 lpm

Tractor hitch
Rear Type	IIN
Control	electronic lower link draft sensing
Rear lift (at ends)	11234 lbs 5095 kg
	13137 lbsOptOptional 5958 kg
Rear lift (at 24"/610mm)	8201 lbs 3719 kg
	10180 lbsOptOptional 4617 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2163
	1000@2200

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	11124 to 12742 pounds
Front tire	11.00x16
Rear tire	18.4R38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery volts	12

References
MC Series published in 2005, by McCormick
MC Series published in 2008, by McCormick

Engine

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer	Perkins 1106
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	366.1 ci 6.0 L
Bore/Stroke	3.9370x5.00 inches 100 x 127 mm
Emissions	Tier 2
Power	132 hp 98.4 kW
Rated RPM	2200
Torque	408 lb-ft 553.2 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	32 qts 30.3 L
Oil change	500 h

Transmission

Transmission options
16-speed partial power shift
32-speed partial power shift with creeper

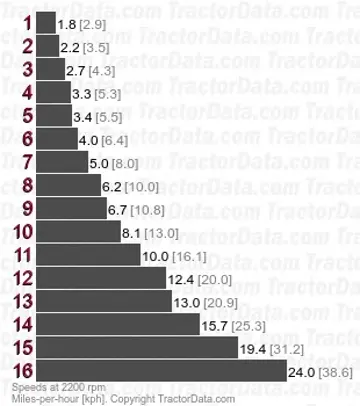

Transmission — 16 forward and 12 reverse partial power shift

Type	partial power shift
Gears	16 forward and 12 reverse
Clutch	wet disc
Oil capacity	79.2 qts 75.0 L
Four power shift speeds in four ranges with power shuttle. Available AutoSpeed transmission option with push-button range and power shifting. Available in 30 KPH and 40 KPH gearing.
With 18.4R34 rear tires and 40 KPH transmission. Reverse speeds are 15% faster than forward in the same gear.

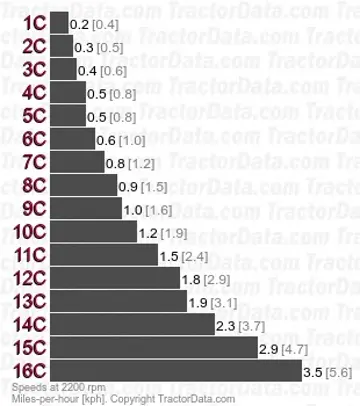

Transmission — 32 forward and 24 reverse partial power shift with creeper

Type	partial power shift with creeper
Gears	32 forward and 24 reverse
Creeper range option doubles the available speeds in the transmission.
With 18.4R34 rear tires. Reverse speeds are 15% faster than forward in the same gear.

Dimensions

McCormick Intl MC135 Tires
Standard tires (ag)	Front: 11.00x16. Rear: 18.4R38 (2WD)
	Front: 14.9x28. Rear: 18.4R38 (4WD)

Dimensions
Wheelbase	104.3 inches 264 cm
Length	188 inches 477 cm
Width	77 inches 195 cm
Height	110.6 inches 280 cm
Ground clearance	16 inches 40 cm
Front axle	2WD
Front axle	Carraro 4WD
Front axle	Independent front suspension

McCormick Intl MC135 Weight
2WD ROPS	11124 lbs 5045 kg
4WD ROPS	11652 lbs 5285 kg
2WD Cab	12742 lbs 5779 kg
4WD Cab	12742 lbs 5779 kg

Attachments

Attachment overview
McCormick L150 loader
McCormick L160 loader
McCormick L155 (self-leveling) loader
McCormick L165 (self-leveling) loader

Photos

McCormick Intl MC135 Power6 tractor photo
