Ursus 1222

The Ursus 1222 is a tractor produced by Ursus. It is equipped with a 416.4 ci 6.8 L engine. The rated power output is 145 hp 108.1 kW. Transmission: 16 forward and 8 reverse. Operating weight: 10737 lbs 4870 kg.

Engine Power
145 hp 108.1 kW
Fuel & Capacities
34.3 gal 129.8 L
Transmission
16 forward and 8 reverse
Operating Weight
10737 lbs 4870 kg

Ursus 1222 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Ursus 1222 tractor photo
1984 - 2009
1984 - 2009
Production
Manufacturer
Ursus
Built in Warsaw, Poland
Variants
1222
2WD
1224
4WD
Ursus 1222 Engine
Zetor 6.8L 6-cyl diesel
Fuel tank
34.3 gal 129.8 L
Engine details ...
Ursus 1222 Transmission
16-speed
Transmission details ...
Ursus 1222 Power
Engine
145 hp 108.1 kW
PTO (claimed)
97 hp 72.3 kW
Mechanical
Two-wheel drive
Power steering
Hydraulic dry disc brakes
Cab standard with heater.
Hydraulics
Pump flow
10.8 gpm 40.9 lpm
Tractor hitch
Rear Type
II
Control
position and draft control
Rear lift
9094 lbs 4125 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000 (1.375)
Dimensions & Tires
Wheelbase
106.1 inches 269 cm
Weight
10737 lbs 4870 kg
Front tire
7.50-20
Rear tire
18.4-34
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
42

Engine

Engine Detail — 416.4 ci / 6.8 L Diesel

Manufacturer
Zetor Z8701.1
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
416.4 ci 6.8 L
Bore/Stroke
4.33x4.72 inches 110 x 120 mm
Power
119 hp 88.7 kW
Air cleaner
oil bath
Rated RPM
2200
Torque
302.4 lb-ft 410.1 Nm
Torque RPM
1450

Engine Detail — 416.4 ci / 6.8 L Diesel

Manufacturer
Zetor
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
416.4 ci 6.8 L
Bore/Stroke
4.33x4.72 inches 110 x 120 mm
Power
145 hp 108.1 kW
Rated RPM
2200
Torque
530 lb-ft 718.7 Nm
Torque RPM
1650

Transmission

Transmission — 16 forward and 8 reverse

Gears
16 forward and 8 reverse
Four gears (1-4) in two ranges (II/I) plus reverse range (R) with two-speed power shift.

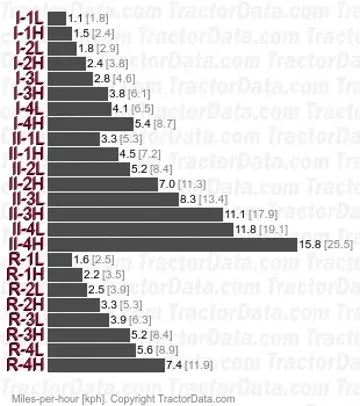

1222 speeds

Dimensions

Ursus 1222 Tires
Ag front
7.50-20
Ag rear
18.4-34
Dimensions
Wheelbase
106.1 inches 269 cm
Length
163.8 inches 416 cm
Width
77.6 inches 197 cm
Height
101.6 inches 258 cm
Operating weight
10737 lbs 4870 kg
Ballasted weight
12434 lbs 5640 kg
Ground clearance
16.7 inches 42 cm
Front tread
53.2/59.1/65/70.9 inches 135/150/165/180 cm
Rear tread
59.1/62/65/67.9/70.9/73.8 inches 150/157/165/172/180/187 cm
