McKee 350
The McKee 350 is a tractor produced by Mckee. It is equipped with a 152 ci 2.5 L engine. The rated power output is 47 hp 35.0 kW. Transmission: 8 forward and 2 reverse. Operating weight: 4034 lbs 1829 kg.
Engine Power
47 hp
35.0 kW
Fuel & Capacities
17.2 gal
65.1 L
Transmission
8 forward and 2 reverse
Operating Weight
4034 lbs
1829 kg
Mckee 350 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Utility tractor | Utility tractor |
|---|
Note: the McKee model 350 is the same as the Ebro 350. The following data is from the 350 listing. |
|---|
Production | |
|---|---|
Manufacturer | McKee |
Utility tractor | |
Built in Spain | |
McKee 350 Engine | |
|---|---|
Perkins 2.5L 3-cyl diesel | |
Fuel tank | 17.2 gal
65.1 L |
Engine details ...  | |
McKee 350 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
McKee 350 Power | |
|---|---|
Engine | 47 hp
35.0 kW |
PTO (claimed) | 45 hp
33.6 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | 540 (1.375) |
Rear PTO Type | 540:2250 |
Dimensions & Tires | |
|---|---|
Weight | 4034 lbs
1829 kg |
Front tire | 6.00x16 |
Rear tire | 13x28 |
Full dimensions and tires ...  | |
Engine
Note: the McKee model 350 is the same as the Ebro 350. The following data is from the 350 listing. |
|---|
Engine Detail — 152 ci / 2.5 L Diesel
Manufacturer | Perkins AD3.152 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 152 ci
2.5 L |
Bore/Stroke | 3.60x5.00 inches
91 x 127 mm |
Power | 47 hp
35.0 kW |
Rated RPM | 2250 |
Torque | 123 lb-ft
166.8 Nm |
Torque RPM | 1300 |
Starter volts | 12 |
Oil capacity | 6.3 qts
6.0 L |
Coolant capacity | 11.6 qts
11.0 L |
Transmission
Note: the McKee model 350 is the same as the Ebro 350. The following data is from the 350 listing. |
|---|
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Oil capacity | 28 qts
26.5 L |
Dimensions
Note: the McKee model 350 is the same as the Ebro 350. The following data is from the 350 listing. |
|---|
McKee 350 Tires | |
|---|---|
Ag front | 6.00x16 |
Ag rear | 13x28 |
Ag front | 5.50x16 |
Ag rear | 11x28 |
11x36 | |
12x36 | |
Dimensions | |
|---|---|
Length | 128.7 inches
326 cm |
Width | 72 inches
182 cm |
Height (steering wheel) | 59.8 inches
151 cm |
Weight | 4034 lbs
1829 kg |
Ground clearance | 15.8 inches
40 cm |
Photos

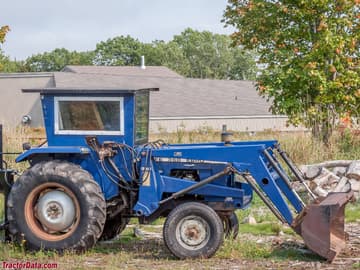

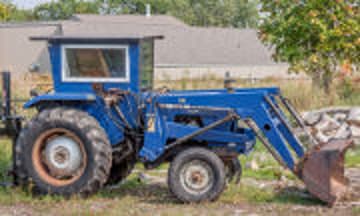

McKee 350
Mckee 350 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mckee 350.
Converted Equivalents:
Horsepower (HP)47 hp
Kilowatts (kW)35 kW
Metric Horsepower (PS / CV)47.7 PS
