New Holland 2120

The New Holland 2120 is a tractor produced by New Holland. It is equipped with a 138.4 ci 2.3 L engine. The rated power output is 40 hp 29.8 kW. Transmission: Hydraulic Shuttle Shift (HSS). Operating weight: 3572 to 3858 pounds.

Overview

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 1920212033.3hp42.6hp2120↓ 1987-1995

Note: the New Holland model 2120 is the same as the Ford 2120. The following data is from the 2120 listing.

Production
Distributor	New Holland
Manufacturer	Shibaura
Compact Utility tractor
Built in Japan
Original price	$21,200

New Holland 2120 Engine
Shibaura 2.3L 4-cyl diesel
Fuel tank	11.1 gal 42.0 L
Engine details ...

New Holland 2120 Power
Engine (gross)	42.6 hp 31.8 kW
Engine (net)	40 hp 29.8 kW
PTO (claimed)	34.5 hp 25.7 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS. Optional FOPS canopy.

Hydraulics
Type	open center
Pump flow	9.3 gpm 35.2 lpm
Total flow	12.1 gpm 45.8 lpm
Steering flow	2.8 gpm 10.6 lpm

Tractor hitch
Rear Type	I
Control	draft control
Rear lift (at 24"/610mm)	2574 lbs 1167 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	74.8 inches 189 cm
Weight	3572 to 3858 pounds
Front tire	6.00x16
2WD Rear tire	13.6x28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Compact Diesel Tractors published in 1996, by New Holland
North American Buyer's Guide published in 1997, by New Holland

Engine

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 1920212033.3hp42.6hp2120↓ 1987-1995

Note: the New Holland model 2120 is the same as the Ford 2120. The following data is from the 2120 listing.

Engine Detail — 138.4 ci / 2.3 L Diesel

Manufacturer	Shibaura T854
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	138.4 ci 2.3 L
Bore/Stroke	3.346x3.937 inches 85 x 100 mm
Power (net)	40 hp 29.8 kW
Power (gross)	42.6 hp 31.8 kW
Compression	18:1
Rated RPM	2500
Starter	electric
Starter volts	12
Coolant capacity	8.5 qts 8.0 L

Transmission

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 1920212033.3hp42.6hp2120↓ 1987-1995

Note: the New Holland model 2120 is the same as the Ford 2120. The following data is from the 2120 listing.

Transmission options
12-speed gear
12-speed power shuttle

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Three gears (1-3) plus reverse (R) in four ranges.

Transmission — Hydraulic Shuttle Shift (HSS)

Transmission	Hydraulic Shuttle Shift (HSS)
Type	power shuttle
Gears	12 forward and reverse

Dimensions

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 1920212033.3hp42.6hp2120↓ 1987-1995

Note: the New Holland model 2120 is the same as the Ford 2120. The following data is from the 2120 listing.

New Holland 2120 Tires
2WD Standard tires (ag)	Front: 6.00x16. Rear: 13.6x28
4WD Standard tires (ag)	Front: 8.00-18. Rear: 13.6x28
Lawn/turf front	25x8.50-14
	27x8.50-15
Lawn/turf rear	14.9x26
	18.4x16.1

Dimensions
Wheelbase	74.8 inches 189 cm
Length	137.2 inches 348 cm
Width	62 inches 157 cm
Height (ROPS)	93.3 inches 236 cm
2WD Shipping weight	3572 lbs 1620 kg
4WD Shipping weight	3858 lbs 1749 kg
4WD Ground clearance	14 inches 35 cm
2WD Ground clearance	14.6 inches 37 cm
2WD Front tread	48 to 76 inches 121 to 193 cm
4WD Front tread	49.2 inches 124 cm
Rear tread	48.8 to 76.4 inches 123 to 194 cm

Attachments

	1996 - 2000 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 2000
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 1920212033.3hp42.6hp2120↓ 1987-1995

Note: the New Holland model 2120 is the same as the Ford 2120. The following data is from the 2120 listing.

Attachment overview
Blade
Front-end loader
Backhoe

Ford 758B Backhoe
Backhoe type	Ford 758B Backhoe
Transport height	78 inches 198 cm
2-Foot flat digging depth	102 inches 259 cm
8-Foot flat digging depth	83 inches 210 cm
Loading height	78.5 inches 199 cm
Bucket Rotation	177°
Bucket force	2875 lbs 1304 kg
Dipperstick force	1710 lbs 775 kg

Photos

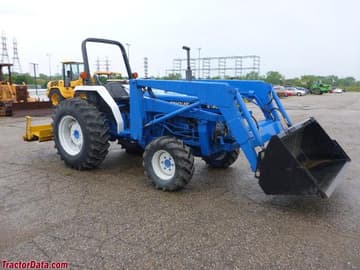

New Holland 2120

New Holland 2120

New Holland 2120
