Mercedes-Benz Trac 65/70

The Mercedes-Benz Trac 65/70 is a tractor produced by Mercedes Benz. It is equipped with a 230.78 ci 3.8 L engine. The listed engine power is Diesel (listed): 65 hp / 48.5 kW. Transmission: 16 forward and reverse. Drive type: 4x4 4WD. Operating weight: 7210 lbs 3270 kg.

Engine Power

Diesel (listed): 65 hp / 48.5 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

31.7 gal 120.0 L

Transmission

16 forward and reverse

Operating Weight

7210 lbs 3270 kg

Overview

	1972 - 1975

Production
Manufacturer	Mercedes-Benz

Mercedes-Benz Trac 65/70 Engine
3.8L 4-cyl diesel
Fuel tank	31.7 gal 120.0 L
Engine details ...

Mercedes-Benz Trac 65/70 Transmission
16-speed
Transmission details ...

Mercedes-Benz Trac 65/70 Power
Engine	65 hp 48.5 kW

Mechanical
Drive	4x4 4WD
Steering	hydrostatic power

Hydraulics
Pump flow	10.6 gpm 40.1 lpm

Tractor hitch
Rear lift	6615 lbs 3000 kg

Power Take-off (PTO)
Rear PTO Type	540, 1000

Dimensions & Tires
Wheelbase	94.49 inches 240 cm
Weight	7210 lbs 3270 kg
Front tire	14.9-24
Rear tire	14.9-24
Full dimensions and tires ...

Engine

Engine Detail — 230.78 ci / 3.8 L Diesel

Fuel Type	Diesel
Configuration	4-cylinder
Displacement	230.78 ci 3.8 L
Bore/Stroke	3.8189x5.0394 inches 97 x 128 mm
Power	65 hp 48.5 kW
Rated RPM	2400
Torque	162.3 lb-ft 220.1 Nm
Torque RPM	1600

Transmission

Transmission — 16 forward and reverse

Gears

16 forward and reverse

Dimensions

Mercedes-Benz Trac 65/70 Tires
Ag front	14.9-24
Ag rear	14.9-24

Dimensions
Wheelbase	94.49 inches 240 cm
Length	165.35 inches 419 cm
Height	104.33 inches 264 cm
Weight	7210 lbs 3270 kg

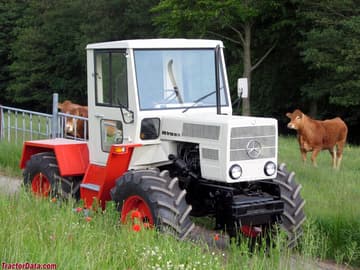

Photos

Mercedes-Benz Trac 65/70

Recommended Implements & Sizing Guide

Engineering recommendations for Mercedes Benz Mercedes-Benz Trac 65/70 based on its 65 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mercedes Benz Mercedes-Benz Trac 65/70.

Estimated Continuous Field Runtime: 9.4 hrs

Approximately 9.4 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (12.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Mercedes Benz Mercedes-Benz Trac 65/70 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mercedes Benz Mercedes-Benz Trac 65/70.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)65 hp

Kilowatts (kW)48.5 kW

Metric Horsepower (PS / CV)65.9 PS
