Mercedes-Benz Trac 700

The Mercedes-Benz Trac 700 is a tractor produced by Mercedes Benz. It is equipped with a 242.37 ci 4.0 L engine. The listed engine power is Diesel (listed): 65 hp / 48.5 kW; Diesel (listed): 68 hp / 50.7 kW. Transmission: 12 forward and 6 reverse. Drive type: 4x4 4WD. Operating weight: 7926 lbs 3595 kg.

Overview

	1975 - 1991

Production
Manufacturer	Mercedes-Benz

Mercedes-Benz Trac 700 Power
Engine	68 hp 50.7 kW

Mechanical
Drive	4x4 4WD
Steering	hydrostatic power
Disc brakes
Cab standard.

Hydraulics
Pump flow	10.6 gpm 40.1 lpm

Tractor hitch
Rear lift	6615 lbs 3000 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	7926 lbs 3595 kg
Front tire	12.4-28
Rear tire	12.4-28
Full dimensions and tires ...

Engine

Engine options
Mercedes-Benz 3.8L 4-cyl diesel
Mercedes-Benz 4.0L 4-cyl diesel

Engine Detail — 230.8 ci / 3.8 L Diesel

Manufacturer	Mercedes-Benz OM 314
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	230.8 ci 3.8 L
Bore/Stroke	3.81x5.04 inches 97 x 128 mm
Power	65 hp 48.5 kW
Rated RPM	2400
Torque	159.3 lb-ft 216.0 Nm
Torque RPM	1600

Engine Detail — 242.37 ci / 4.0 L Diesel

Manufacturer	Mercedes-Benz OM 364
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	242.37 ci 4.0 L
Bore/Stroke	3.84x5.24 inches 98 x 133 mm
Power	68 hp 50.7 kW
Rated RPM	2400
Torque	173.3 lb-ft 235.0 Nm
Torque RPM	1800

Transmission

Transmission options
8-speed
12-speed

Transmission — 8 forward and 6 reverse

Gears

8 forward and 6 reverse

Transmission — 12 forward and 6 reverse

Gears

12 forward and 6 reverse

Dimensions

Mercedes-Benz Trac 700 Tires
Ag front	12.4-28
Ag rear	12.4-28

Dimensions
Wheelbase	94.5 inches 240 cm
Length	161.4 inches 409 cm
Height	109.5 inches 278 cm
Weight	7926 lbs 3595 kg

Photos

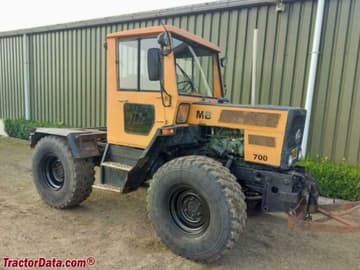

Mercedes-Benz Trac 700
