Minneapolis-Moline 5 Star
 | 1957 - 1960 | 1957 - 1960 |
|---|---|---|
1957 - 1960 | ||
1957 - 1960 |
|---|
Transmission | |||
|---|---|---|---|
Transmission | Ampli-Torc | ||
Type | partial power shift | ||
Gears | 10 forward and 2 reverse | ||
Clutch | 304.8mm dry disc | ||
Oil capacity | 56 qts
53.0 L | ||
Oil type | SAE 80 | SAE 80 | |
SAE 80 | |||
Five gears (1-5) plus reverse (R) in with two speed (low-high) Ampli-Torc power shift. | |||
SAE 80 |
|---|

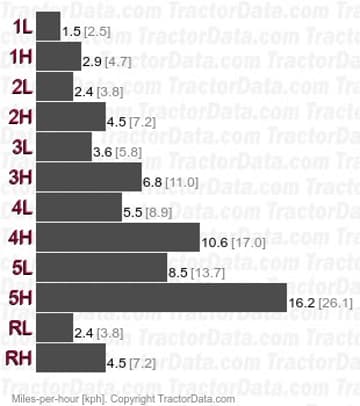

Speeds | |
|---|---|
With 13.6x38 rear tires. | |
 |

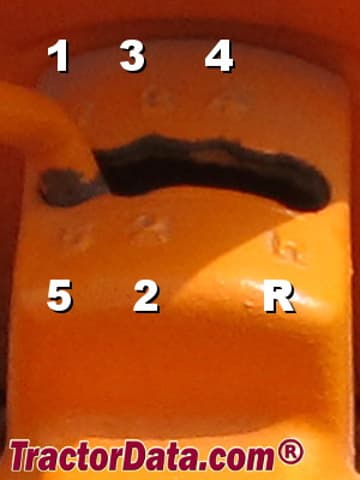

Shift Pattern | |
|---|---|
 |
